BROADCOM HFBR-4532Z Datasheet & Stock

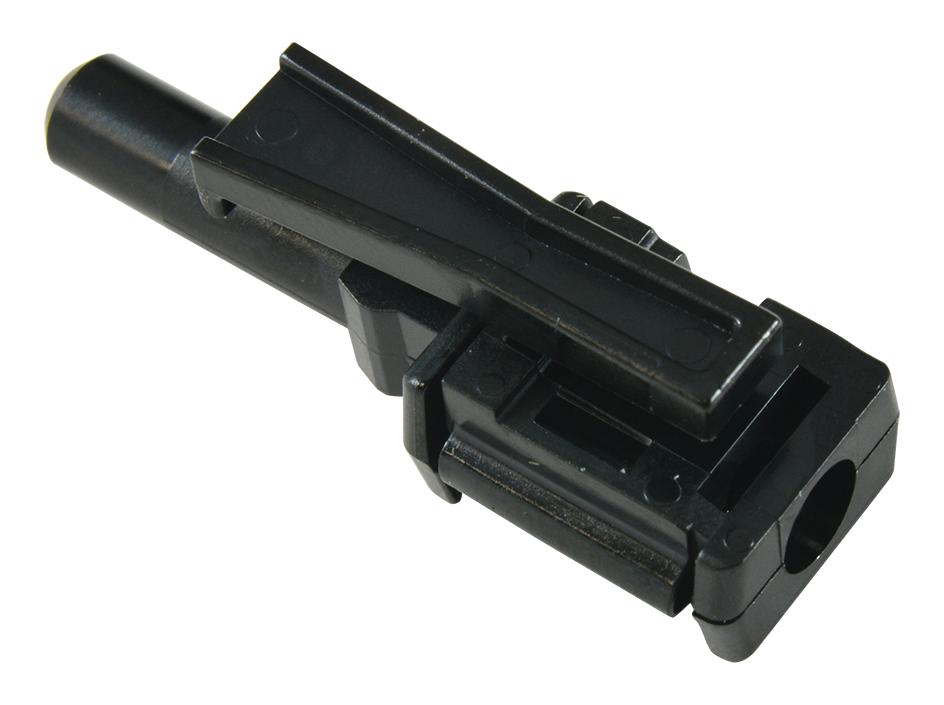

The HFBR-4532Z is a black crimpless simplex latching plastic Fibre Connector provide a snap-in action when mated to Versatile Link components. The simplex connector is colour-coded to facilitate identification of transmitter and receiver connections. If the POF cable/connector will be used at extreme operating temperatures or experience frequent and wide temperature cycling effects, the cable/connector attachment can be strengthened with an RTV adhesive. The connector is made of a flame retardant VALOX UL94V-0 material. The innovative design uses a simple, snap-together concept which eliminates the need for crimping. This connector not only saves the user labour and tool cost, but reduces the yield loss due to installa­tion error.




Compatible with Avago Versatile Link family of connectors and fibre optic components

1mm Diameter Plastic Optical Fibre (POF) in two grades

Requires no crimp ring or crimping tool

Durable ULTEM® plastic material (UL file #E121562)

Excellent retention force

Symmetry in non-latching connector gives simplex/duplex functionality





Applications


Fibre Optics,

Industrial,

Automotive,

Medical,

Communications & Networking,

Imaging, Video & Vision





Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
