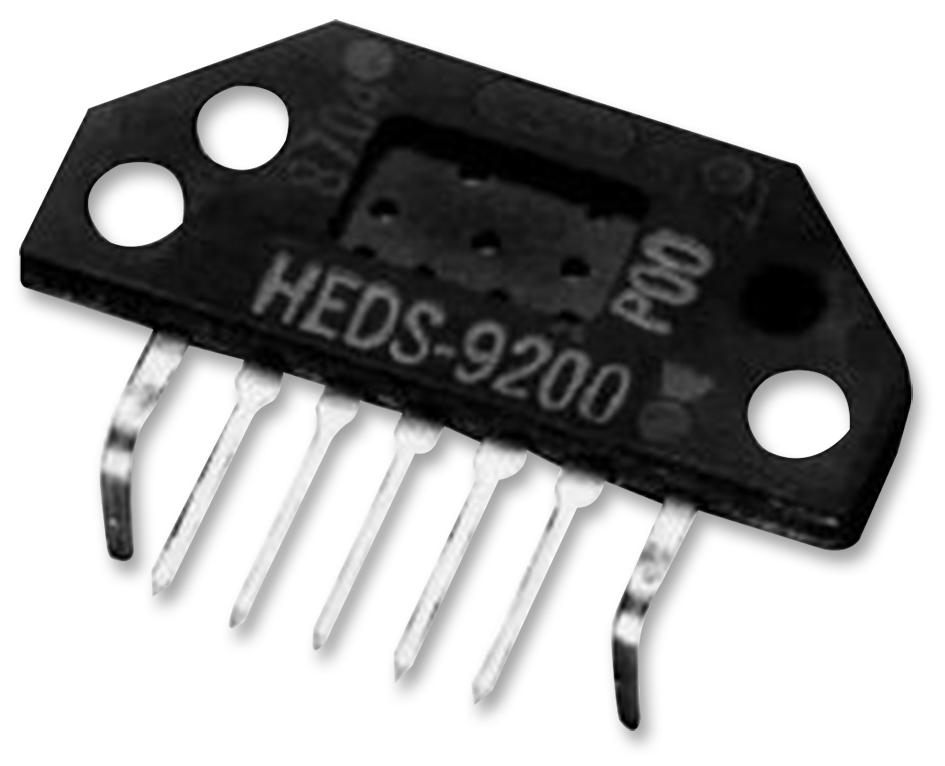

BROADCOM HEDS9200360 Optical Encoder Module
The HEDS-9200 series is a high-performance, low-cost optical incremental encoder module designed for linear position sensing in various automation and industrial applications. It features a collimated LED light source, integrated photodetectors, and a highly tolerant mounting design. Operating with a 5V power supply, the module offers high resolution options ranging from 120 to 200 counts per inch, outputting quadrature signals ideal for precise motion detection. Its small C-shaped package simplifies installation, and it is suitable for high-volume applications like printers, tape drives, and factory automation.
BROADCOM HEDS9200360 Optical Encoder Module Specifications:
- Supply Voltage: 5 V
- Operating Temperature: -40°C to 100°C
- Storage Temperature: -40°C to 100°C
- Output Voltage: Vo -6 to Vcc Volts
- Output Current per Channel: 0 to 5 mA
- Resolution Options: 120 to 200 counts per inch (4.72 to 7.87 counts per mm)
- Pulse Width Error: 7 to 35 electrical degrees
- Logic State Width Error: 5 to 35 electrical degrees
- Phase Error: 2 to 13 electrical degrees
- Rise Time: 200 ns, Fall Time: 50 ns
- Max Frequency: Guaranteed at 100 kHz, operates up to 240 kHz with derating
- Package Dimensions: 26.67 mm x 8.6 mm x 6 mm
- Mounting: Small C-shaped plastic package with mounting holes, aligning recesses
- Connectors: Various options including AMP, DuPont, Molex, Avago
Buy the Avago HEDS9200360 – Reliable Optical Encoder for Industrial Applications
Purchase the optical encoder module online today to ensure accurate linear position detection in manufacturing and automation systems. Designed with high resolution options and easy mounting, this module guarantees reliable performance in high-speed industrial environments. Its quadrature output provides precise motion feedback, making it ideal for printers, tape drives, and factory automation. With a robust 5V supply, compact design, and flexible mounting options, buy now to enhance your control and measurement solutions with an industry-leading optical encoder.
Get Avago HEDS9200360 today—built for precise linear motion detection and long-lasting durability in industrial automation systems.
Frequently Asked Questions
Where can I buy BROADCOM HEDS9200360?
You can click on the BUY or RFQ button to purchase HEDS9200360 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HEDS9200360?
You can download the HEDS9200360 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HEDS9200360?
BROADCOM
