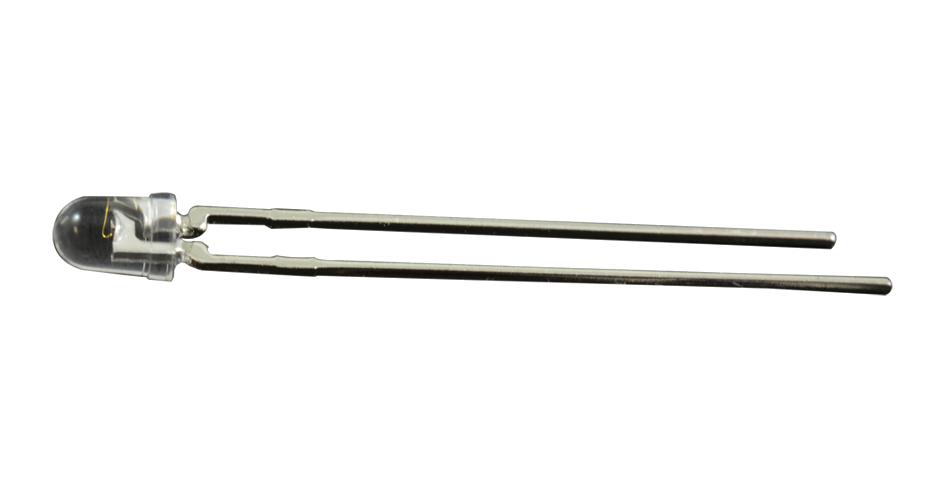

BROADCOM HLMPK155 Red LED lamp
The HLMP-K155 is a 3mm low-current red LED lamp featuring an untinted, non-diffused lens made from double heterojunction AlGaAs. This solid-state LED utilizes AlGaAs/GaAs material technology, providing outstanding light output efficiency at very low drive currents. It emits a deep red color with a dominant wavelength of 637nm and offers high luminous intensity, wide viewing angles, and low power consumption with minimal forward voltage. Compatible with CMOS, MOS, and TTL logic levels, it is ideal for LED lighting, signaling, and power management applications. Market demand may extend lead times, and delivery dates are subject to change. No discounts apply.
BROADCOM HLMPK155 Red LED lamp Specifications:
- Lens Type: Untinted, Non-diffused
- Color: Deep Red
- Dominant Wavelength: 637 nm
- Luminous Intensity: Min. 1.3 mcd at 1 mA, Max. 5400 mcd (bin limits vary)
- Forward Voltage: Typical 18 V at 1 mA
- Peak Wavelength: 645 nm
- Spectral Line Halfwidth: 20 nm
- Speed of Response: 30 ns
- Capacitance: 30 pF
- Thermal Resistance: Junction to Cathode Lead 260°C/W
- Peak Forward Current: 300 mA
- Average Forward Current: 20 mA
- DC Forward Current: 30 mA
- Power Dissipation: 87 mW
- Reverse Voltage: 5 V
- Operating Temperature: -20°C to +100°C
- Storage Temperature: -40°C to +100°C
- Maximum Junction Temperature: 110°C
Buy the Avago HLMP-K155 – Reliable Red LED for Industrial Applications
Order the Avago HLMP-K155 red LED lamp online now for high efficiency illumination and signaling. Its low current operation, wide viewing angle, and durable package make it perfect for industrial, electronic, and power management applications. Designed with high-quality AlGaAs technology, this 3mm LED offers a deep red color at 637nm wavelength and excellent optical performance at minimal power. Its compatibility with CMOS, MOS, and TTL circuits ensures effortless integration into various electronic systems. Purchase today for quick delivery and reliable performance in demanding industrial environments.
Get Avago HLMP-K155 today—built for precision, low power, and long-lasting durability.
Frequently Asked Questions
Where can I buy BROADCOM HLMPK155?
You can click on the BUY or RFQ button to purchase HLMPK155 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMPK155?
You can download the HLMPK155 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMPK155?
BROADCOM
