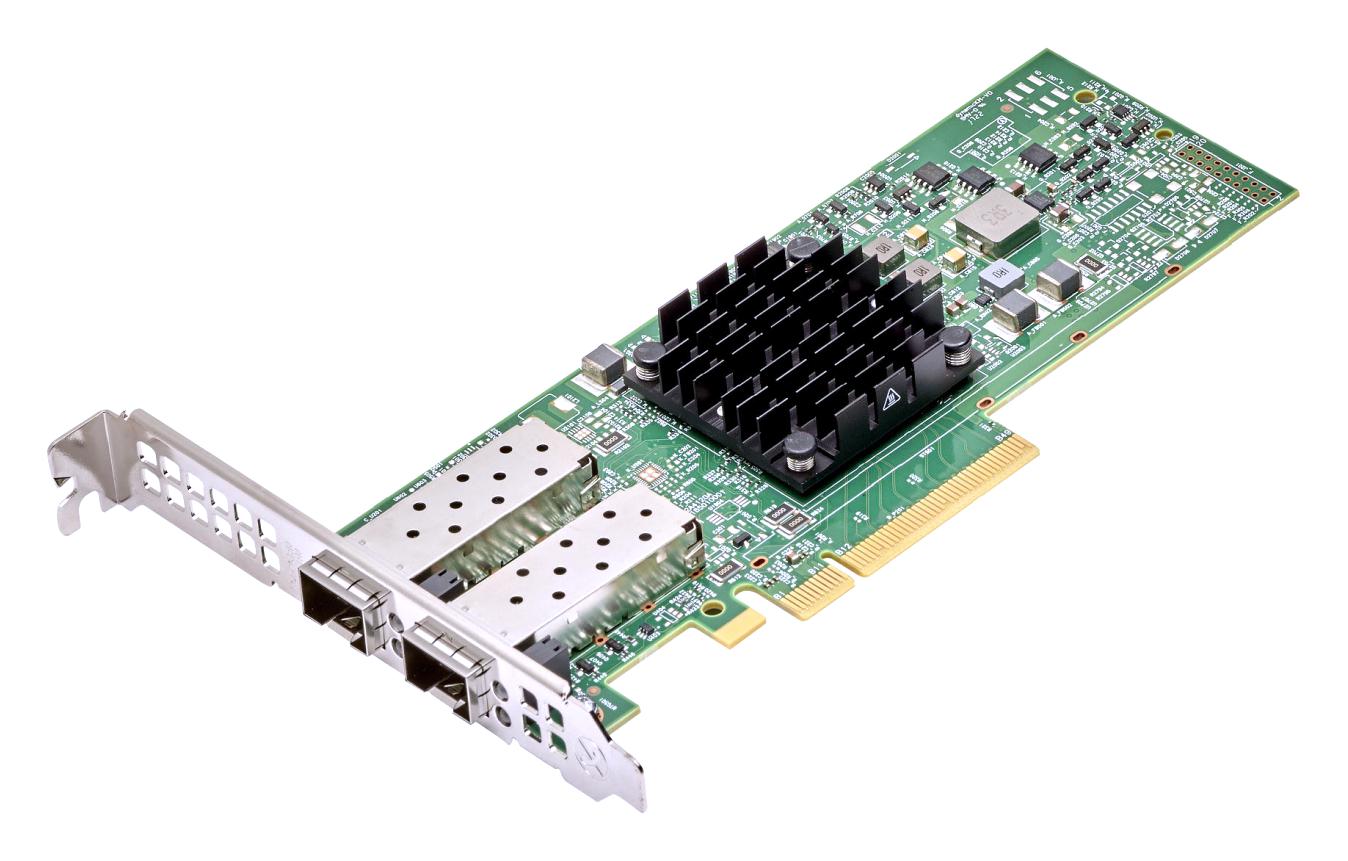

BROADCOM BCM957412A4120AC 10 GbE Network Interface Card
The BCM957412A4120AC is a dual-port 10 Gb/s Ethernet PCI Express Gen3 x8 network interface card designed for data centers and cloud infrastructure. It supports both SFP+ optical modules and copper direct-attach cables, conforming to SFF-8402 standards. Features include Wake-on-LAN, VXLAN, NVGRE, GRE offloads, RDMA over converged Ethernet, jumbo frames up to 9 KB, and advanced congestion management. Compatible with PCIe v3.0, it offers high throughput, virtualization support, and multiple offloads for optimal network performance in demanding environments.
BROADCOM BCM957412A4120AC 10 GbE Network Interface Card Specifications:
- Interface: PCI Express Gen3 x8
- Ports: Dual 10 Gb/s SFP+ optical or copper
- Form factor: Standard and low-profile brackets
- Supported standards: PCIe v3.0, SFF-8402
- Jumbo frame support: Up to 9 KB
- Flow processing: TruFlow engine
- Virtualization: SR-IOV with up to 128 VFs
- Offloads: TCP, UDP, IP checksum, TSO, LRO, VLAN
- LED indicators: Activity and link speed
- Power consumption: Typical 7.9W, max 9.1W
- Dimensions: Board size as per standard PCIe card
- Environmental: Storage temp. -40°C to +65°C, humidity 5-95%
- Compliance: CE, UL, FCC, EMC standards
- Weight: 75 grams
Buy the Broadcom Series Network Interface Card: BCM957412A4120AC
Enhance your data center with the Broadcom BCM957412A4120AC, a dual-port 10 Gb/s Ethernet PCIe card offering optical and copper interfaces. Built for high performance, virtualization, and advanced network offloads, this PCIe v3.0 compliant device ensures reliable, scalable connectivity. It supports jumbo frames, various offloads, and features robust environmental standards. Ideal for cloud computing and enterprise data centers, purchase online today to upgrade your network infrastructure with proven reliability and speed.
Buy Broadcom BCM957412A4120AC now and experience unmatched reliability and high-speed performance for data-intensive network environments.
Frequently Asked Questions
Where can I buy BROADCOM BCM957412A4120AC?
You can click on the BUY or RFQ button to purchase BCM957412A4120AC from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part BCM957412A4120AC?
You can download the BCM957412A4120AC datasheet or visit the BROADCOM website for support.
Who is the manufacturer of BCM957412A4120AC?
BROADCOM
