BROADCOM HCPL3140000E High-Current Optocoupler
The HCPL-3140-000E optocoupler features a GaAsP LED coupled to an integrated power output stage, designed for high-current output of 0.4A. Suitable for driving power IGBTs and MOSFETs in motor control inverters, it provides a high voltage range with minimal common-mode interference. With a high dielectric withstand voltage of 1kV at 25kV/μs, it operates efficiently across -40°C to 100°C. Its safety approvals include UL, CSA, and IEC standards, and it is available in DIP8 and SO8 packages. Proper static precautions are essential during handling to avoid damage.
BROADCOM HCPL3140000E High-Current Optocoupler Specifications:
- Maximum Output Current: 0.4A
- Dielectric Withstand Voltage: 1kV at 25kV/μs
- Input Voltage Range: 10V to 30V
- Operating Temperature Range: -40°C to 100°C
- Storage Temperature: -55°C to 125°C
- Peak Transient Input Current: 1.0A
- Input Reverse Voltage: 5V
- Output Power Dissipation: 600mW
- Input Power Dissipation: 45mW
- Pollution Degree: 2
- Maximum Working Insulation Voltage: 630Vpeak
- Insulation Resistance: >10^9Ω at 500V
- Package Types: DIP8, SO8
- Safety Approvals: UL 1577, CSA, IEC/EN 60747-5-2
- Lead (Pb) Free and RoHS compliant options available

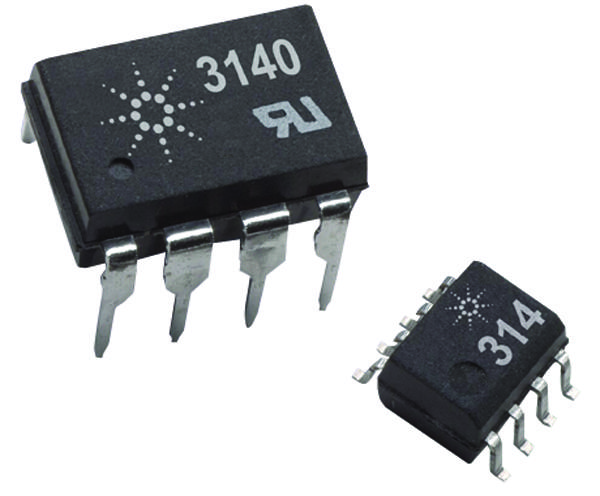

Buy the Avago Series HCPL3140 High-Current Optocoupler: HCPL3140
Order the Avago HCPL3140 optocoupler online now to ensure high-current drive capability for IGBTs and MOSFETs in motor control and industrial applications. Designed for maximum output of 0.4A, with high dielectric withstand voltage and wide temperature operation, it guarantees reliable insulation and switching performance. Perfect for power inverter integrations, it includes safety approvals and RoHS compliance. Buying online provides quick delivery, competitive pricing, and trusted quality—opt for this essential power control component today to enhance your automation and power conversion projects.
Get Avago HCPL3140 today—built for power management, motor control, and industrial inverter reliability.
Frequently Asked Questions
Where can I buy BROADCOM HCPL3140000E?
You can click on the BUY or RFQ button to purchase HCPL3140000E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HCPL3140000E?
You can download the HCPL3140000E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HCPL3140000E?
BROADCOM
