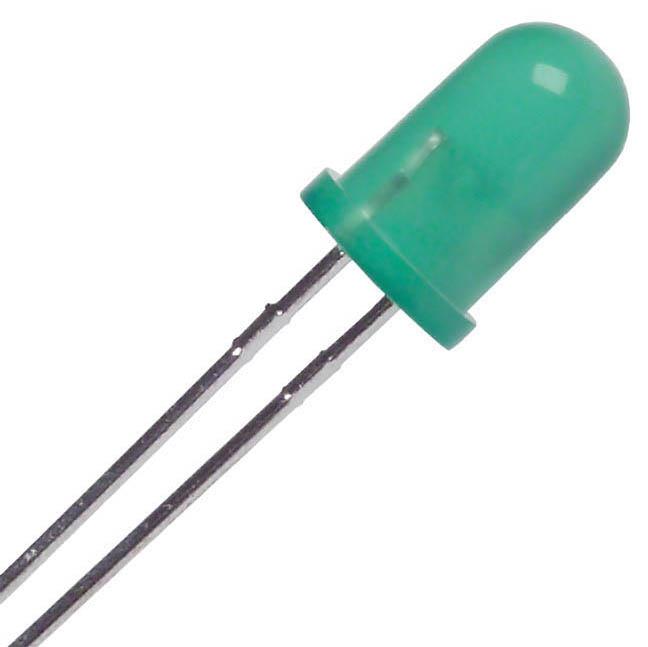

BROADCOM HLMP3950 Green LED
The HLMP-3950 is a non-diffused, ultra-bright green LED lamp made from gallium phosphide. It features enhanced brightness and improved color performance, along with sturdy leads for durability. The LED is compatible with integrated circuits and supports low current operation, making it reliable and rugged. Suitable for LED lighting applications. Please note that market demand has extended lead times and delivery dates may fluctuate. This product is not eligible for discounts.
BROADCOM HLMP3950 Green LED Specifications:
- Color: Green
- Series: HLMP-3950
- Material: Gallium Phosphide
- Type: Non-diffused LED
- Features: Enhanced brightness, improved color performance
- Leads: Sturdy, durable
- Temperature Range: -40°C to +100°C
- Junction Temperature: 110°C
- Peak Forward Current: 90 mA
- Average Forward Current: 25 mA
- DC Current: 30 mA
- Reverse Voltage: 5 V
- Wavelength: 565 nm
- Luminous Intensity: Typ. 265 mcd @ 20 mA
- Soldering Temperature Max.: 250°C
- Storage Temperature: -40°C to +100°C
Buy the Avago HLMP3950 – Reliable Green LED for Industrial Applications
Purchase the Avago HLMP3950 green LED lamp online today and experience superior brightness, reliability, and energy efficiency for your industrial lighting and indicator needs. With robust leads and a long lifespan, this Gallium Phosphide LED is ideal for applications requiring vivid green illumination. Ensure your projects benefit from high-performance LEDs designed to withstand operational stresses and temperature variations. Order now to secure fast delivery, competitive pricing, and superior technical support for your LED requirements.
Get Avago HLMP3950 today—built for precision, rugged durability, and efficient green illumination in industrial lighting and indicator systems.
Frequently Asked Questions
Where can I buy BROADCOM HLMP3950?
You can click on the BUY or RFQ button to purchase HLMP3950 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMP3950?
You can download the HLMP3950 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMP3950?
BROADCOM
