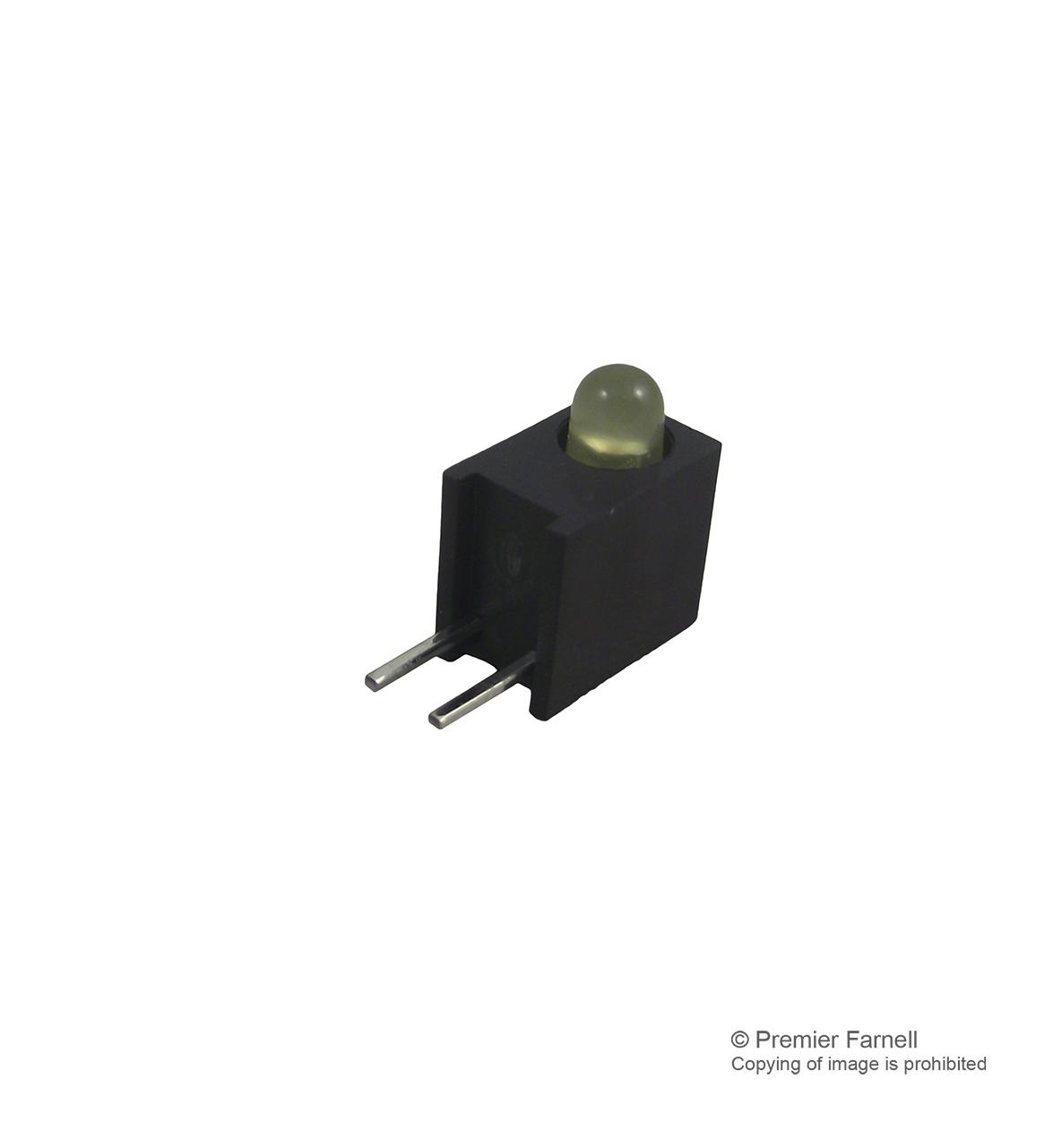

BROADCOM HLMP1719A00A2 Low Power LED Lamp
These tinted diffused LED lamps are optimized for low DC current operation, tested at 2 mA for consistent brightness. Suitable for applications like telecommunications, portable devices, and indicators, they feature high efficiency, wide viewing angles, and various package styles. The series includes T-1 and T-13/4 sizes with colors like red, yellow, and green, offering reliable performance in low power circuits. Their durable construction and compatibility with CMOS and TTL systems make them ideal for versatile electronic indicator and signaling applications. Precise dimensions and electrical characteristics ensure efficient integration into electronic assemblies.
BROADCOM HLMP1719A00A2 Low Power LED Lamp Specifications:
- Package Options: T-1 (3 mm), T-13/4 (5 mm)
- Colors: Red, Yellow, Green
- Luminous Intensity at 2 mA: 15–50 mcd depending on model
- Forward Voltage: 1.8–2.2 V
- Peak Wavelength: 569–635 nm
- Spectral Line Halfwidth: 28–40 nm
- Thermal Resistance: 260–290 °C/W junction to cathode
- Maximum Power Dissipation: Red 14 mW, Yellow 17.5 mW, Green 15.4 mW
- DC Forward Current: 7 mA
- Reverse Voltage: 5 V
- Operating Temperature Range: -40 to +100 °C
- Storage Temperature Range: -40 to +100 °C
- Lead Dimensions: approximately 0.45–0.50 mm diameter, suitable for PTH holes 0.98–1.15 mm
- Soldering Conditions: Pre-heat to 105°C max for 60 sec, peak temperature 250–260°C for 3–5 sec
- Electrical Characteristics: Voltage 1.8–2.2 V, Capacitance 1–18 pF, Response time 90–500 ns
Buy the Buy Avago LED Series HLMP1700 Part Number HLMP1719A00A2 Online
Buy the versatile Avago HLMP1719A00A2 low power diffused LED lamp online today to ensure your projects are equipped with efficient, reliable, and high-quality indicator solutions. Designed for low DC current operation, these LEDs are perfect for telecom, portable devices, and low power circuits. They feature wide viewing angles, multiple package options, and compatibility with CMOS and TTL systems. Secure your supply now and experience dependable performance with durable construction suitable for various environmental conditions. Easy ordering ensures quick deployment into your electronic assemblies.
Order your Avago HLMP1719A00A2 LED today and enjoy reliable low current performance for your indicator and signaling needs.
