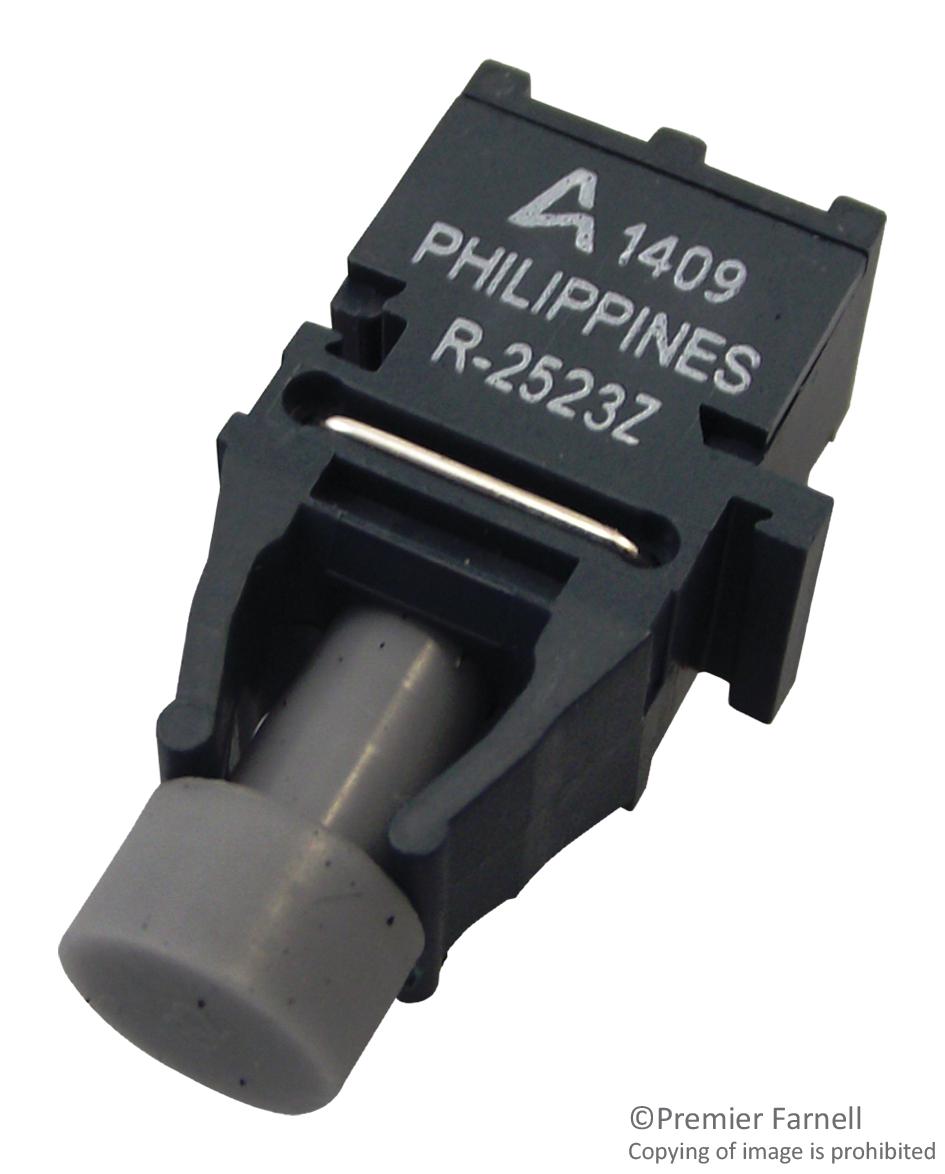

BROADCOM HFBR2523Z Fiber Optic Receiver
The HFBR-2523Z is a 40kbaud fiber optic receiver optimized for versatile applications including data communication, industrial systems, and automotive networks. It provides excellent voltage isolation, EMI/RFI immunity, and features an integrated shield for noise reduction. Suitable for use with 1mm plastic optical fiber, it simplifies optical calculations by incorporating connector interface losses. Operating at 600nm, it is compatible with standard TTL logic, has a peak supply current of 6mA, and features flame-retardant construction, high noise immunity, and an interlocking mounting system, making it ideal for high-volume networking and industrial environments.
BROADCOM HFBR2523Z Fiber Optic Receiver Specifications:
- Wavelength: 600 nm
- Supply Voltage: 4.75 V to 5.25 V
- Output Voltage: High 5.5 V, Low 0.4 V
- Output Current: Max 250 μA (High), Max 8 mA (Low)
- Optical Input Power: -39 dBm (Logic 0), -53 dBm (Logic 1)
- Effective Diameter: 1 mm
- Numerical Aperture: 0.5
- Pull-up Resistor: 680 to 1700 Ω
- Maximum Storage Temperature: -40°C to +85°C
- Operating Temperature Range: -40°C to +85°C
- Reverse Input Breakdown Voltage: 5 V to 11 V
- Diode Capacitance: 86 pF
- Mounting: Horizontal module with interlocking option
- Flame-retardant housing: VALOX UL 94 V-0
- Application: Data transmission, industrial control, automotive, and EMC filtered systems
- Wave soldering: Device is moisture sensitive; over 10 sec at 260°C, recommended precautions
- Dimensions: 7.62 mm width, 10.16 mm height, PCB mount hole for self-tapping screw
- Material: Flame-retardant VALOX plastic, RoHS-compliant
Buy the Buy Avago HFBR-2523Z Fiber Optic Receiver Part Number HFBR2523Z Online
Purchase the Avago HFBR-2523Z fiber optic receiver online to access a low current, high-performance 40kbaud solution. With excellent noise immunity, flame-retardant housing, and optimized for 1mm plastic fiber, it supports industrial, automotive, and LAN applications. Simplify your optical system design with integrated interface losses and known component compatibility. Order now and upgrade your data transmission systems with a dependable, efficient fiber optic receiver designed for high-volume industrial environments, ensuring robust performance, durability, and easy integration for all your high-speed communication needs.
Order your Avago HFBR-2523Z fiber optic receiver today and enhance your data communication and industrial networks with reliable, noise-immune optical links.
Frequently Asked Questions
Where can I buy BROADCOM HFBR2523Z?
You can click on the BUY or RFQ button to purchase HFBR2523Z from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HFBR2523Z?
You can download the HFBR2523Z datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HFBR2523Z?
BROADCOM
