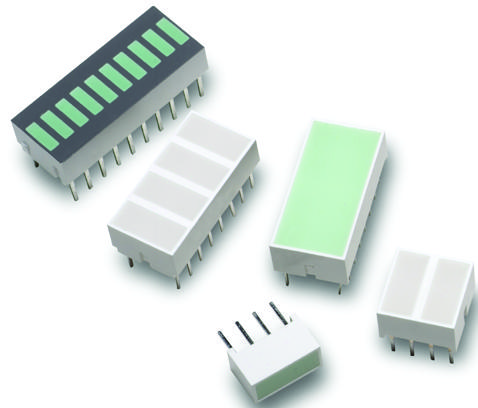

BROADCOM HLMP2885 Green LED Light Bar
The HLMP-2885 is a green LED light bar featuring rectangular, large, and uniform light-emitting areas suitable for applications requiring a bright, noticeable light source. It is assembled in dual-in-line packages with individual light-emitting sections, providing excellent contrast for ON-OFF states. Designed to be stacked in the X-Y plane, this LED is ideal for use in consumer electronics and applications where legend attachment is needed. The green LEDs utilize a liquid phase GaP epitaxial layer on a GaP substrate. Note that market demand has extended lead times, and delivery dates may vary. The product is exempt from discounts.
BROADCOM HLMP2885 Green LED Light Bar Specifications:
- Size of Light Surface Area: 8.89 mm x 8.89 mm (0.350 in. x 0.350 in.)
- Luminous Intensity: 25-50 mcd at 20mA
- Peak Wavelength: 565 nm
- Dominant Wavelength: 572 nm
- Forward Voltage: 2.2-2.6 V at 20mA
- Reverse Breakdown Voltage: 15 V
- Operating Temperature Range: -20°C to +85°C
- Storage Temperature Range: -40°C to +85°C
- Thermal Resistance: 150 °C/W (LED Junction-to-Pin)
- Wave Soldering Temperature: 250°C for 3 seconds
- Electrical configuration: Has separate anode and cathode pins, connectable in series, parallel, or series-parallel
- The device body typically measures approximately 8.89 mm square with a height of about 4.0 mm
Buy the Avago Series Green LED Light Bar: HLMP-2885
Experience high-quality illumination with the Avago HLMP-2885 green LED light bar. Featuring large, uniform light-emitting areas, it offers excellent visibility for indicators, legends, and display panels. Its dual-in-line package allows easy stacking in the XY plane, making it ideal for consumer electronics, signage, and industrial applications. The device leverages liquid phase GaP epitaxial technology for consistent color and brightness, with a peak wavelength of 565 nm. Designed for reliable operation between -20°C to +85°C, it ensures long-term performance in various environments. Purchase online for fast delivery and competitive prices.
Get Avago HLMP-2885 green LED light bar today—built for vivid display and long-lasting durability.
Frequently Asked Questions
Where can I buy BROADCOM HLMP2885?
You can click on the BUY or RFQ button to purchase HLMP2885 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMP2885?
You can download the HLMP2885 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMP2885?
BROADCOM
