BROADCOM HSMFC165 Miniature Bi-Color Surface Mount LEDs
High-density bi-color surface mount chip LEDs with a compact 1.6 mm x 0.8 mm footprint and 0.5 mm height, ideal for mobile device backlighting and indicators. Available in multiple color combinations such as red, green, blue, yellow, amber, and orange, these diffused optics LEDs support reflow soldering. Operating within -40°C to +85°C, they feature low forward voltage and high luminous efficacy. Suitable for keypad, LCD backlighting, and front panel indicators, they offer reliable performance and compatibility with automated assembly processes.
BROADCOM HSMFC165 Miniature Bi-Color Surface Mount LEDs Specifications:
- Size: 1.6 mm x 0.8 mm footprint, height 0.5 mm
- Colors: Red, Amber, Green, Blue, Yellow, Orange in various combinations
- Operating Temperature Range: -40°C to +85°C
- Reflow Soldering Compatible
- DC Forward Current: 10-20 mA depending on color
- Power Dissipation: 38-52 mW
- Reverse Voltage: 5 V
- Luminous Intensity: 2.8–45 mcd depending on color and current
- Peak Wavelengths: 468-637 nm depending on color
- Viewing Angle: 120°
- Maximum Junction Temperature: 95°C
- Dimensions: 1.75 mm x 0.95 mm x 0.6 mm (L x W x H)
- Package: 8 mm tape on 7" reels in quantities of 4000 units
- ESD Sensitivity: Class 1A, handle with appropriate precautions

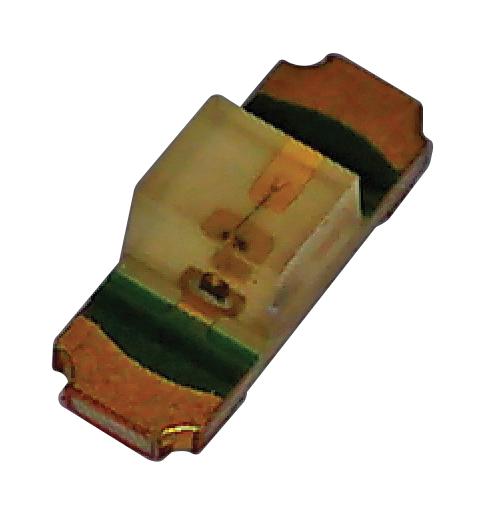

Buy the Buy Avago Technologies HSMF-C165 Part Number HSMF-C165 Online
Purchase Avago Technologies HSMF-C165 miniature bi-color surface mount LEDs online to enhance your mobile device backlighting and indicator projects. These compact LEDs feature a standard 1.6 mm x 0.8 mm footprint, with diffused optics and a height of just 0.5 mm for maximum density on circuit boards. Suitable for reflow soldering, operating from -40°C to +85°C, they deliver reliable brightness and color options including red, green, blue, amber, yellow, and orange. Ideal for keypad, LCD backlighting, pushbutton backlighting, and front panel indicators, ensuring high performance in diverse applications.
Get Avago Technologies HSMF-C165 today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy BROADCOM HSMFC165?
You can click on the BUY or RFQ button to purchase HSMFC165 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HSMFC165?
You can download the HSMFC165 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HSMFC165?
BROADCOM
