BROADCOM HLMP4000 Bi-Color LED

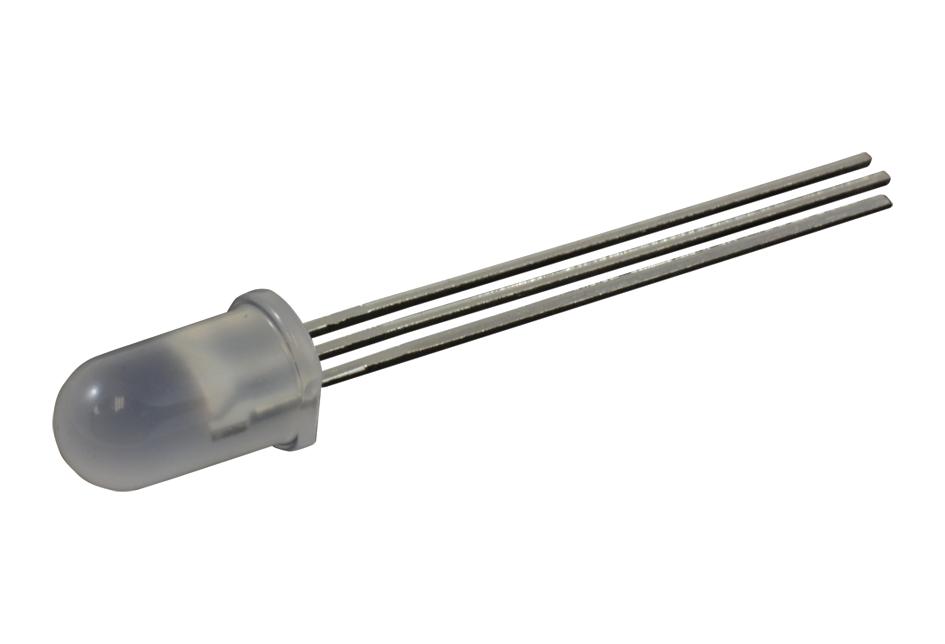

The HLMP-4000 from Avago is a through-hole, 5mm (T-1 3/4 size) bi-color LED featuring three leads with a common cathode, suitable for dual-state applications. It displays green and high-efficiency red colors, with two chips mounted centrally for optimal viewing angles. Capable of producing different colors through independent pulse width modulation, it offers diffused lenses for wide visibility. Key technical specs include a minimum luminous intensity of 4.2 mcd (green) and 2.1 mcd (red), dominant wavelengths around 570 nm and 626 nm, peak wavelengths near 568 nm and 635 nm, forward voltages of 2.2 V and 1.9 V at 20mA, and a forward current of 10mA. The operating temperature range is -20°C to +100°C, with options for straight or spread leads, though supply may be extended due to high demand.
BROADCOM HLMP4000 Bi-Color LED Specifications:
- Size: 5mm (T-1 3/4) diameter
- Package: Through-hole, round with three leads
- Lead Options: Straight or spread leads available
- Color: Green and high-efficiency red
- Lens Type: Diffused for wide viewing angle
- Luminous Intensity: Minimum 4.2 mcd (green), 2.1 mcd (red)
- Wavelength: Dominant around 570 nm (green), 626 nm (red)
- Peak Wavelength: 568 nm (green), 635 nm (red)
- Forward Voltage: 2.2 V (green), 1.9 V (red) at 20 mA
- Forward Current: 10 mA (nominal)
- Maximum Peak Forward Current: 90 mA
- Average Forward Current: 20-25 mA
- Operating Temperature Range: -20°C to +100°C
- Storage Temperature Range: -40°C to +100°C
- Package Dimensions: Diameter 5.08 mm, height approximately 9.19 mm
- Certifications: Not specified, typical for LEDs
- Notes: Mechanical options include tape & reel or right angle housing; soldering requires careful thermal management.
Buy the Avago HLMP-4000 – Reliable Bi-Color LED for Industrial Applications
Purchase the Avago HLMP-4000 bi-color LED online today and enhance your industrial or electronic projects with reliable dual-state illumination. This 5mm through-hole LED features green and high-efficiency red colors, with options for straight or spread leads to suit diverse designs. Its diffused lens ensures wide visibility, optimal for indicator applications. The device delivers minimum luminous intensities of 4.2 mcd and 2.1 mcd, with peak wavelengths of 568 nm and 635 nm, operating at voltages of 2.2V and 1.9V. Its durable construction withstands temperatures from -20°C to +100°C, making it ideal for demanding environments.
Buy Avago HLMP-4000 now and experience unmatched reliability and performance in dual-color indicator solutions.
Frequently Asked Questions
Where can I buy BROADCOM HLMP4000?
You can click on the BUY or RFQ button to purchase HLMP4000 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMP4000?
You can download the HLMP4000 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMP4000?
BROADCOM
