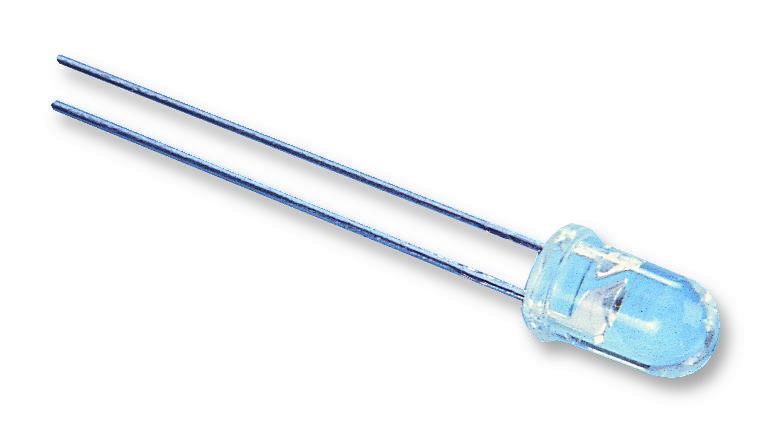

BROADCOM HLMPEG32NR000 High-brightness LED lamp
These high-brightness AllnGaP LED lamps feature precision optical performance with superior light output, stable long-term performance, and excellent sunlight readability. Designed with advanced optics, they produce well-defined spatial radiation patterns at various viewing angles, including 8°, 15°, 23°, 30°. Suitable for outdoor traffic signals, pedestrian signs, automotive lighting, and advertising displays, these lamps operate at high temperatures up to +130°C with UV-resistant epoxy packaging. They meet automotive and traffic standards, offering reliable, moisture-resistant illumination in demanding environments.
BROADCOM HLMPEG32NR000 High-brightness LED lamp Specifications:
- Viewing angles: 8°, 15°, 23°, 30°
- Wavelengths: 590 nm amber, 605 nm orange, 615 nm reddish-orange, 626 nm red
- Luminous intensity: up to 27,000 mcd at 20 mA
- Maximum LED junction temperature: +130°C
- Materials: UV-resistant epoxy, aluminum indium gallium phosphide technology
- Operating temperature: -40°C to +100°C
- Forward voltage: 1.90V to 2.02V (typical at 20 mA)
- Peak wavelength: 590-626 nm
- Spectral halfwidth: approx. 17 nm
- Power dissipation: up to 30 mA continuous forward current, 100 mA peak
- Environmental: High moisture resistance, UV resistant, suitable for outdoor use
- Mounting: Compatible with PCB auto-insertion, with or without lead standoffs
Buy the Avago Series T-134 LED Lamps: HLMPEG32NR000
Order the high-brightness LED lamp today for outdoor traffic, automotive, or advertising applications. Designed with advanced optics and UV-resistant epoxy, this LED offers superior sunlight readability, stable long-term performance, and high operating temperature up to +130°C. Easy to install with PCB compatibility, these lamps meet automotive and traffic standards for outdoor durability. Enhance your signaling and signage with reliable, moisture-resistant illumination from Avago Technologies—buy online now for fast delivery and unmatched quality.
Buy Avago HLMPEG32NR000 now and experience unmatched reliability and performance in outdoor illumination and traffic signaling applications.
