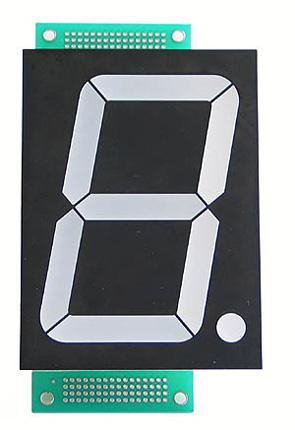

BROADCOM HDSPA103 Seven Segment Display
The HDSP-A103 is a low-current 7-segment display designed for applications requiring low power consumption. It features industry-standard size and pinout, with evenly illuminated segments that provide an attractive appearance. Available in multiple colors, it suits general use and environments with high ambient light or long string lengths. Its design offers flexibility for various digital display needs, making it ideal for long-digit multiplexing and low power projects. Market demand has extended lead times, and delivery dates may fluctuate. The product is exempt from discounts.
BROADCOM HDSPA103 Seven Segment Display Specifications:
- Size: Industry standard 7-segment display
- Pinout: Standard industry configuration
- Character Size: 7.6mm, 10mm, 10.9mm, 14.2mm, 20mm options available
- Colors Available: AlGaAs Red, High Efficiency Red (HER), Yellow, Green
- Luminous Intensity: Ranges from 390 to 1480 cd depending on model and current
- Forward Voltage: Approximately 17V to 25V depending on color and model
- Peak Wavelength: 635nm (Red), 583nm (Yellow), 566nm (Green)
- Operating Temperature: -20°C to +100°C
- Storage Temperature: -55°C to +100°C
- Peak Forward Current: 45 mA per segment
- DC Forward Current: 15 mA per segment
- Reverse Voltage: 3.0V per segment
- Wave Soldering Temperature: 250°C for 3 seconds
- Design Flexibility: Available in single and dual digit formats with decimal points
- Packaging: Designed for long digit multiplexing, categories for intensity and color binning
Buy the Avago Series HDSP-A10x Low-Current Seven Segment Display: HDSP-A103
Get your Avago Series HDSP-A103 low-current seven-segment display online today to benefit from high efficiency, multiple color options, and reliable performance. Designed for applications requiring minimal power consumption, this display offers industry-standard size and pinout configurations. Its evenly illuminated segments ensure clear visibility even in bright environments, making it ideal for long-digit multiplexing in various digital devices. Due to market demand, lead times may be extended. Purchase now to secure fast, dependable delivery of this versatile display for your next project.
Order your Avago Series HDSP-A103 low-current seven-segment display today and ensure efficient, low-power digital visualization for your projects.
Frequently Asked Questions
Where can I buy BROADCOM HDSPA103?
You can click on the BUY or RFQ button to purchase HDSPA103 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HDSPA103?
You can download the HDSPA103 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HDSPA103?
BROADCOM
