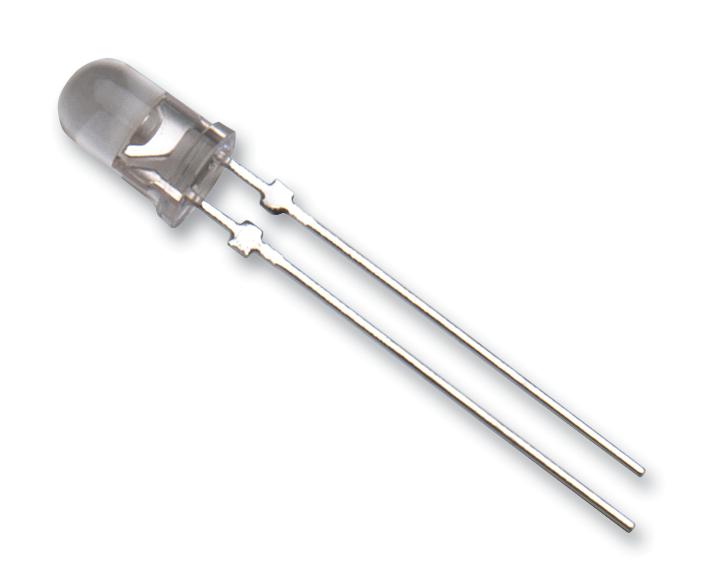

BROADCOM HLMPEG1HY10DD High Brightness LED
These high brightness AllnGaP LEDs provide superior outdoor visibility with excellent sunlight readability and stable long-term output. Designed with advanced optical epoxy and UV inhibitors, they resist moisture and high temperatures up to +130°C. Available in red and amber with viewing angles of 15°, 23°, and 30°, they’re suitable for traffic signals, pedestrian crossings, warning lights, and outdoor advertising. Their compact design ensures easy PCB assembly, while optimized soldering and handling procedures ensure reliability in demanding outdoor conditions, making them ideal for industrial and transportation signage applications.
BROADCOM HLMPEG1HY10DD High Brightness LED Specifications:
- Color Options: Red (626 nm), Amber (590 nm)
- Viewing Angles: 15°, 23°, 30°
- Maximum Junction Temperature: +130°C
- Operating Temperature Range: -40°C to +100°C
- Storage Temperature Range: -40°C to +100°C
- Forward Voltage: 18-24V at 20mA
- Peak Forward Current: 100mA
- Power Dissipation: 120mW
- Luminous Intensity: 4200 to 21,000 mcd depending on bin
- Dominant Wavelength Tolerance: ±15%
- Etheric epoxy with UV inhibitor for high moisture and temperature resistance
- Compatible with wave and manual soldering procedures, with recommended peak temperature not exceeding 260°C
- Lead material: Tin-plated, mild steel, leads preformed or cut to length
Buy the Avago HLMP-EGxx – Reliable High Brightness LEDs for Industrial Applications
Order the high brightness LED modules from Avago now and ensure your outdoor signage, traffic signals, and warning lights are highly visible and reliable. These LEDs feature advanced AllnGaP technology for excellent sunlight readability, moisture and temperature resistance, and long-term stability. Designed for easy PCB integration, they support various viewing angles and are suitable for demanding industrial environments. Experience superior outdoor illumination performance with Avago’s proven reliability. Shop online today for quick delivery and technical support to meet your project needs.
Buy Avago HLMP-EGxx LED modules now and experience unmatched brightness, durability, and outdoor performance for industrial and traffic signage.
