BROADCOM HCPL4502000E High-Speed Optocoupler
The HCPL-4502-000E is a high-speed, single-channel optocoupler with an integrated LED and photodetector, providing electrical insulation between input and output. Designed for rapid response, it features separate connections for photodiode bias and output transistor collector, increasing switching speeds up to 100 times compared to traditional phototransistor couplers by reducing base-collector capacitance. It is suitable for high-speed TTL applications, using a 16mA input LED for reliable TTL load driving via a 5.6kΩ pull-up resistor. The device offers a minimum CTR of 19% at 16mA, with open-collector output and minimum common mode transient immunity of 15kV/µs at VCM=1500V. Supporting temperatures from 0°C to 70°C, it achieves data rates up to 1 Mbps, making it ideal for motor drives, signal processing, and power control.
BROADCOM HCPL4502000E High-Speed Optocoupler Specifications:
- Type: Single-channel optocoupler
- Number of pins: 8

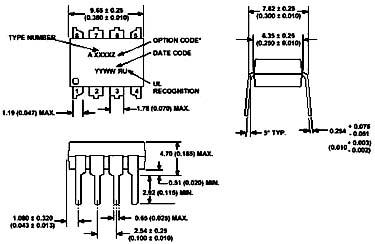

- Package: DIP and Widebody options
- Isolation voltage: 630V (minimum)
- Common mode transient immunity: 15 kV/µs minimum at VCM=1500V
- Current Transfer Ratio: minimum 19% at 16mA
- Input LED forward current: 16mA typical
- Output: open-collector transistor
- Data rate: up to 1 Mbps
- Temperature range: 0°C to 70°C
- Supply voltage: 5 V (logic supply)
- Maximum input voltage: 5 V (reverse voltage)
- Peak input current: 2 A (transient)
- Input capacitance: approximately 60-90 pF
- Soldering peak temperature: 260°C
- Compliance: UL Recognized, CSA Approved
- Insulation dielectric strength: 3750V (UL) for 1 minute
- Reinforced isolation for industrial applications
Buy the Avago HCPL-4502-000E – Reliable High-Speed Optocoupler for Industrial Applications
Order the Avago HCPL-4502-000E now to ensure fast, reliable electrical isolation in your industrial control and power management systems. Designed for high-speed TTL applications, this high-performance optocoupler features an integrated LED and photodetector with separated bias and output connections for rapid switching—up to 1 Mbps. Its open-collector output, excellent common mode transient immunity of 15kV/µs, and a safe isolation voltage of 630V make it suitable for motor drives, signal processing, and power supply feedback. Ensure your system's safety and efficiency by purchasing online today for prompt delivery and superior performance.
Buy Avago HCPL-4502-000E now and experience unmatched reliability and performance in high-speed signal isolation.
