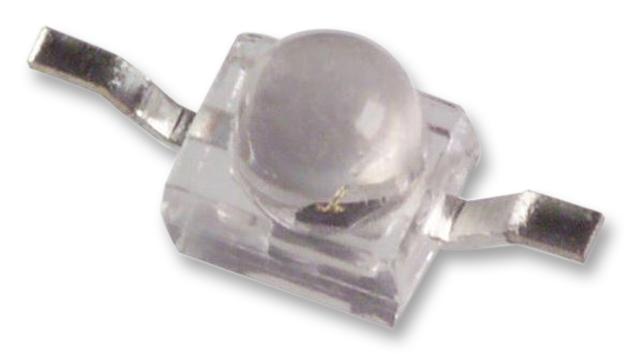

BROADCOM HLMPQ150 Green Indicator LED
This high-brightness green LED emits at a peak wavelength of 565 nm, with a typical luminous intensity of 200 mcd at 10 mA. Designed for indicator and backlighting applications, it features a 26° viewing angle, low forward voltage of approximately 3.0 V, and a maximum reverse voltage of 50 V. The LED is packaged in a compact, subminiature form with axial leads, making it ideal for space-constrained projects and electronic displays requiring efficient, vibrant green illumination. Its thermal resistance is 170 °C/W, ensuring safe operation within specified temperature ranges.
BROADCOM HLMPQ150 Green Indicator LED Specifications:
- Peak Wavelength: 565 nm
- Luminous Intensity: 200 mcd at 10 mA
- Forward Voltage: 3.0 V (max 3.0 V, typical 2.2 V)
- Reverse Voltage: 50 V
- Viewing Angle: 26°
- Thermal Resistance: 170 °C/W
- Package Type: Subminiature axial lead
- Max DC Forward Current: 30 mA
- Peak Forward Current: 90 mA
- Operating Temperature Range: -40°C to +100°C
- Storage Temperature Range: -55°C to +100°C
- Package Dimensions: Compact, suitable for space-critical applications
Buy the Buy BROADCOM Green Indicator LED Part Number HLMPQ150 Online
Enhance your electronic designs with the BROADCOM HLMPQ150 green indicator LED. This compact, high-brightness LED operates at 565 nm with a luminous intensity of 200 mcd, ideal for indicators and backlighting in space-constrained environments. It features a low forward voltage of approximately 3.0 V, a wide operating temperature range, and reliable thermal resistance, ensuring durable performance. Purchase online today to enjoy fast delivery of this energy-efficient, vibrant lighting component perfect for engineers and hobbyists alike.
Order your BROADCOM HLMPQ150 high-brightness green LED today and illuminate your projects with vibrant, efficient, space-saving lighting solutions.
Frequently Asked Questions
Where can I buy BROADCOM HLMPQ150?
You can click on the BUY or RFQ button to purchase HLMPQ150 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMPQ150?
You can download the HLMPQ150 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMPQ150?
BROADCOM
