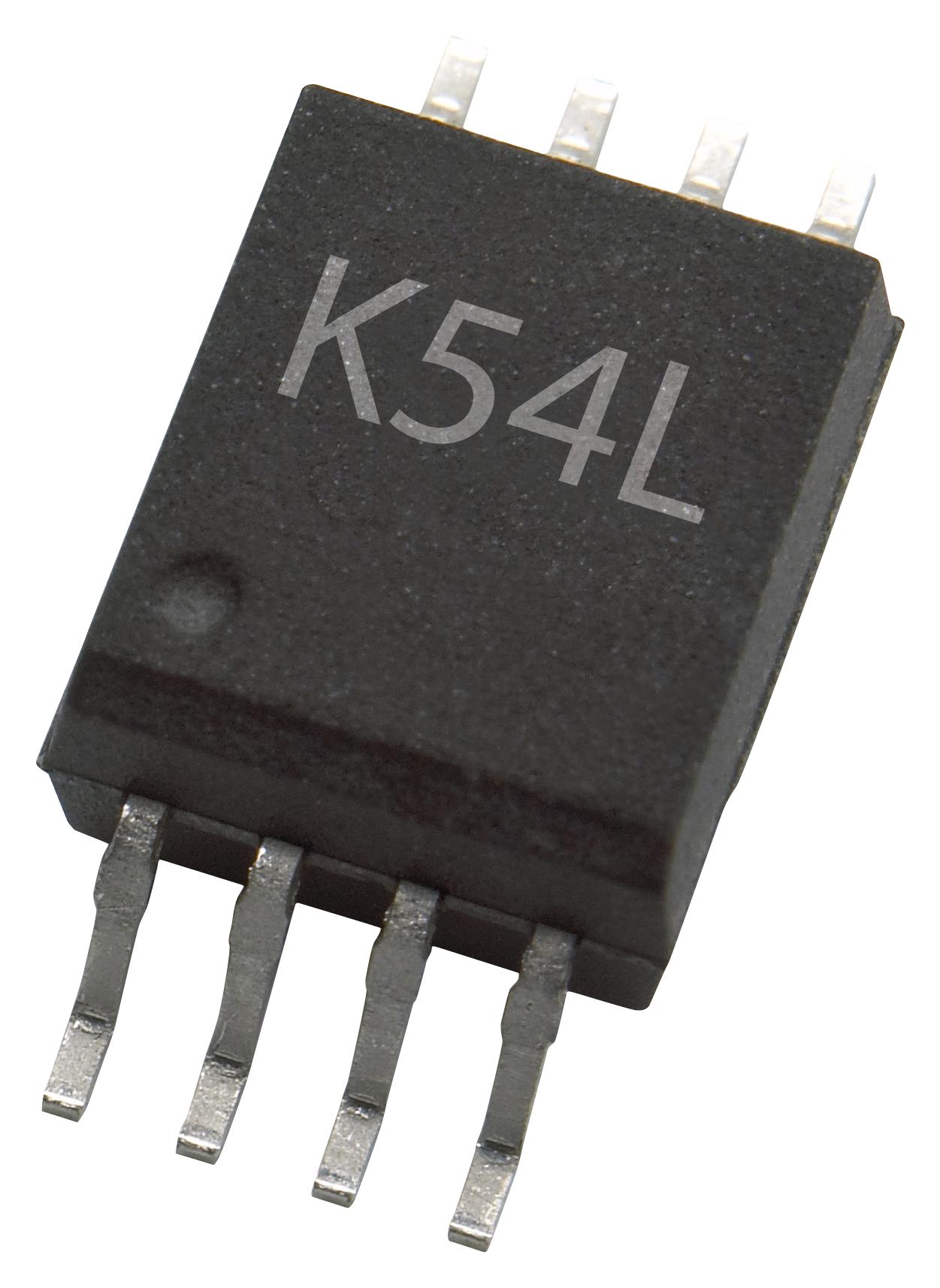

BROADCOM ACPLK54L560E digital optocoupler
The ACPL-K54L560E is a low power, dual-channel digital optocoupler designed for reliable signal transmission and electrical isolation in industrial and communication applications. It features an open-collector output, wide supply voltage range (2.7V to 24V), and a high common-mode transient immunity of 15 kV/μs. The device offers low drive current (3 mA), guaranteed performance over -40°C to +105°C, and UL, CSA, IEC/EN approvals for safety and insulation. Compact package options include stretched SO-8, making it suitable for digital signal isolation, microcontroller interfaces, and power supply feedback loops.
BROADCOM ACPLK54L560E digital optocoupler Specifications:
- Supply Voltage Range: 2.7V to 24V
- Drive Current: 3 mA
- Output Type: Open-collector
- Common Mode Transient Immunity: 15 kV/μs at Vom = 1500V
- Operating Temperature Range: -40°C to +105°C
- Input-Output Resistance: 10^14 Ω
- Input-Output Capacitance: 0.6 pF at 1 MHz
- Isolation Voltage: 3750 V (UL recognition for ACPL-MS0L/054L), 5000 V (UL recognition for ACPL-WS0L/K54L)
- Package Options: SO-5, SO-8, stretched SO-6, stretched SO-8
- Minimum External Air Gap and Creepage: 5-8 mm depending on model
- Input Reverse Voltage: 5 V
- Input Capacitance: 77 pF
- Maximum Insulation Voltage (Vig): 560 - 1140 Vpeak
- Maximum Working Insulation Voltage (Viorm): 560 - 1140 Vpeak
- Soldering Temperature: 260°C for 10 seconds
- Safety Certifications: UL, CSA, IEC/EN 60747-5-5
- Lead Finish: RoHS compliant, Lead-free
