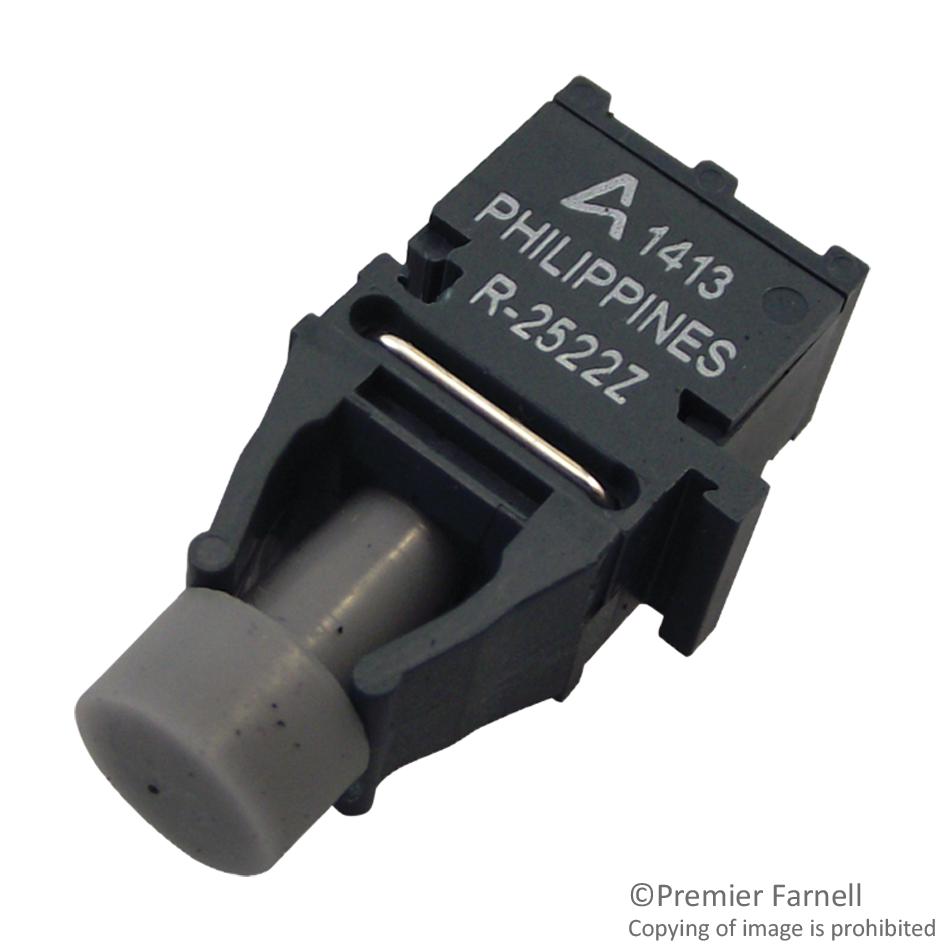

BROADCOM HFBR2522Z Fiber Optic Receiver
The HFBR-2522Z is a 1 Mbaud high-performance fiber optic receiver optimized for low noise immunity, voltage isolation, and EMI/RFI immunity. Featuring an integrated shield inside the IC, it ensures enhanced signal integrity and is ideal for high-speed data communication, industrial networks, and automotive communication systems. Compatible with 1mm plastic optical fiber, it operates efficiently from 0 to 70°C with a peak supply current of 6mA. This RoHS-compliant, flame-retardant receiver offers reliable performance for applications demanding secure, error-free data transmission and robust electromagnetic compatibility.
BROADCOM HFBR2522Z Fiber Optic Receiver Specifications:
- Operating Temperature Range: 0 to 70°C
- Supply Voltage: 4.75 V to 5.25 V
- Output Voltage High: 5.5 V at 250 μA
- Output Voltage Low: 0.4 V at 8 mA
- Output Current: High 250 μA, Low 8 mA
- Optical Input Power Level: -39 to -13.7 dBm
- Internal Pull-up Resistor: 680 to 1700 Ω
- Effective Diameter of Fiber: 1 mm
- Numerical Aperture: 0.5
- Peak Emission Wavelength: 660 nm
- Diode Capacitance: 86 pF
- Connector Compatibility: Simplex, duplex, latching
- Flame Retardant Material: VALOX UL 94 V-0
- RoHS Compliant
- Integrated Noise Shielding
- High Noise Immunity
- Peak Supply Current: 6 mA
Buy the Avago Series Versatile Fiber Optic Receiver: HFBR2522Z
Purchase the Avago HFBR-2522Z fiber optic receiver online today and ensure reliable data transmission with superior noise immunity. Designed for industrial, automotive, and high-speed networking applications, it offers excellent optical sensitivity and EMI/RFI immunity. Its compact, flame-retardant package is RoHS compliant, ensuring environmentally friendly operation. Compatible with 1 mm plastic optical fiber, it seamlessly integrates into existing systems. Order now to benefit from fast delivery, consistent performance, and enhanced data security for your fiber optic communication needs.
Get Avago HFBR-2522Z today—built for precision and long-lasting durability in fiber optic communication solutions.
Frequently Asked Questions
Where can I buy BROADCOM HFBR2522Z?
You can click on the BUY or RFQ button to purchase HFBR2522Z from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HFBR2522Z?
You can download the HFBR2522Z datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HFBR2522Z?
BROADCOM
