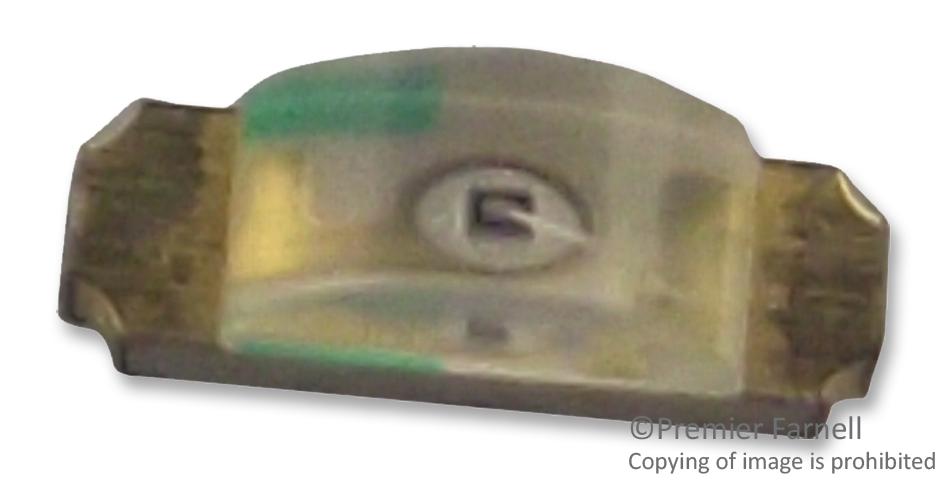

BROADCOM HSMRC110 High Brightness ChipLEDs
These high performance compact chip-type LEDs use efficient InGaN technology to emit bright, vibrant blue and green light at 520 nm and 470 nm wavelengths. Featuring various packages, including top, side, and reverse mounting options, they suit diverse applications like LCD backlighting, push button illumination, and signage. Compatible with IR soldering and delivered in tape and reel packing, they provide high brightness, diffused optics, and wide viewing angles, making them ideal for displays, indicators, and microdisplays in industrial and electronic device environments.
BROADCOM HSMRC110 High Brightness ChipLEDs Specifications:
- Package Dimensions: HSMQ-C110 3.2 x 1.5 x 1.0 mm; HSMQ-C120 1.6 x 1.0 x 0.6 mm; HSMR-C130 1.6 x 0.8 x 0.35 mm; HSMQ-C150 3.2 x 1.6 x 1.1 mm; HSMR-C150 2.0 x 1.25 x 0.8 mm; HSMQ-C170 2.0 x 1.25 x 0.4 mm; HSMR-C190 1.75 x 0.9 x 0.9 mm; HSMQ-C177 2.3 x 1.4 x 0.6 mm; HSMR-C177 2.3 x 1.4 x 0.6 mm; HSMQ-C265 3.7 x 1.45 x 1.3 mm.
- Electrical Characteristics: Forward Voltage Typical 3.4V at 20mA; Max 3.9V; Reverse Voltage 5V; Junction Temp 95°C; Operating Temp Range -40°C to +85°C.
- Optical Characteristics: Green LEDs emit 45-45 mcd at 520 nm with peak at 527 nm and viewing angle 130°, Blue LEDs emit 18-18 mcd at 469 nm with peak at 473 nm and angle 130°.
- Maximum Power Dissipation: 78 mW; Soldering Profile: IR reflow recommended; Storage conditions: 5-30°C @ 60% RH; Tolerance: Dimensions ±0.1 mm unless specified.
- Package Compatibility: IR soldering, light piping, tape and reel delivery with moisture barrier bags.
Buy the Buy High Performance LED Chips Part Number HSMRC110 Online
Order high-performance blue and green chip LEDs online, including model HSMRC110, featuring various packages suitable for LCD backlighting, indicators, and signage. These compact LEDs provide high brightness, diffused optics, and wide viewing angles, ensuring excellent visibility and performance in industrial, electronic, and decorative applications. Delivered in tape and reel packaging, they are compatible with IR soldering, making assembly efficient. Perfect for microdisplays, push buttons, and face panels, these LEDs guarantee durability and consistent quality for demanding uses.
Buy High Performance LED Chips HSMRC110 now and experience unmatched brightness and reliability for display and indicator applications.
Frequently Asked Questions
Where can I buy BROADCOM HSMRC110?
You can click on the BUY or RFQ button to purchase HSMRC110 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HSMRC110?
You can download the HSMRC110 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HSMRC110?
BROADCOM
