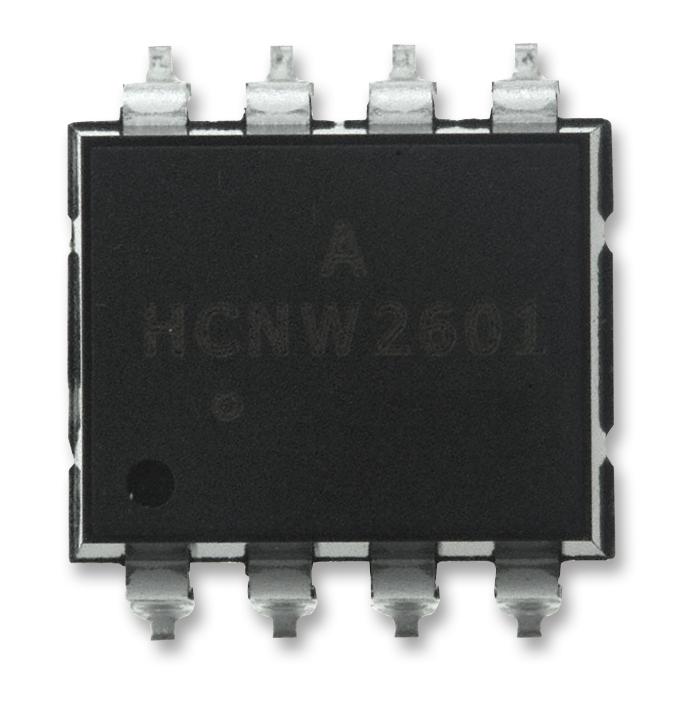

BROADCOM HCNW2601300E Digital Isolator
The HCNW2601 is a high-speed, optocoupler-based digital isolator designed for robust signal isolation in industrial systems. It features a GaAsP light emitting diode coupled with a high-gain photodetector, offering a minimum common mode transient immunity of 15,000 V/us at 1kV. Suitable for high-speed data transmission up to 10 MBd, it is ideal for isolating microprocessor interfaces, power supplies, and communication systems in noise-prone environments. The device complies with RoHS standards and provides reliable galvanic isolation with UL and IEC approvals for safe operation in demanding industrial applications.
BROADCOM HCNW2601300E Digital Isolator Specifications:
- Common Mode Transient Immunity: ≥15,000 V/us at 1kV
- Speed: 10 MBd typical
- Input current: 5 mA maximum
- Isolation Voltage: Up to 5,000 Vrms for UL recognition
- Temperature range: -40°C to +85°C
- Packages: 8-Pin DIP, SOIC-8, Widebody packages
- Input LED: GaAsP light emitting diode
- Output: Open collector Schottky-clamped transistor
- Certifications: UL Recognized, IEC/EN/DIN EN 60747-5-2, RoHS compliant
- Leakage Current: < 5 μA
- Input-Output Capacitance: Approximately 0.6 pF
- Power Dissipation: Up to 85 mW
- Soldering Temperature: 260°C (10 sec)
- Supply Voltage: 4.5V to 5.5V
Buy the HCNLW2601 – Reliable Digital Isolator for Industrial Applications
Ensure robust signal isolation in your industrial automation with the HCPL-2601 optocoupler. This high-speed digital isolator features a 15,000 V/us transient immunity, guarantees up to 10 MBd transmission speed, and adheres to RoHS standards for eco-friendly design. Ideal for microprocessor system interfaces, power supplies, and noise-sensitive environments, it offers UL recognition up to 5,000 Vrms, IP67 compliance in some packages, and operating temperatures from -40°C to +85°C. Purchase online today to improve safety, reliability, and performance of your equipment with a trusted optocoupler solution.
Order your Avago HCPL-2601 series digital isolator today and enhance your industrial systems with high-speed, safe, and reliable signal isolation.
Frequently Asked Questions
Where can I buy BROADCOM HCNW2601300E?
You can click on the BUY or RFQ button to purchase HCNW2601300E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HCNW2601300E?
You can download the HCNW2601300E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HCNW2601300E?
BROADCOM
