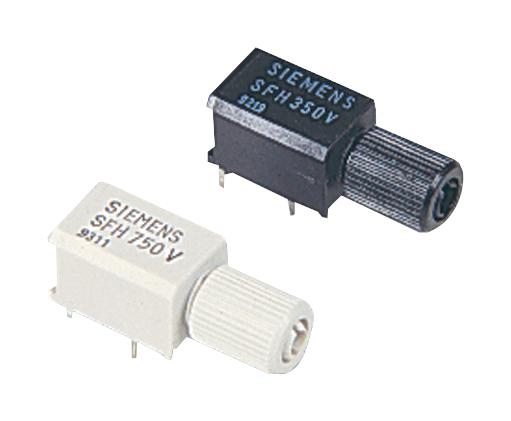

BROADCOM SFH756V Optical Transmitter Module
The SFH756V from Avago is a high-performance 10 Mbps optical transmitter ideal for simple data transmission with polymer optical fiber. It features a 2.2 mm aperture suitable for standard 1000-micron plastic fiber, enabling easy coupling without stripping. The device includes a molded microlens for efficient coupling and offers good linearity at forward currents above 2 mA. Operating within -40°C to +85°C, it has a peak wavelength of 660 nm, a forward voltage of 2.1 V, and a reverse voltage of 3 V. Perfect for fiber optic, industrial, and electronic applications, it ensures reliable optical data transfer.
BROADCOM SFH756V Optical Transmitter Module Specifications:
- Peak Wavelength: 660 nm
- Spectral Bandwidth: 25 nm
- Forward Voltage: 2.1 V
- Forward Current: 50 mA
- Reverse Voltage: 3 V
- Power Dissipation: 120 mW
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Soldering Temperature (2 mm from case): 260°C
- Dimensions: 15.2 mm length, 9.2 mm width, 7.8 mm height
Buy the Broadcom Series SFH756V Optical Transmitter Module: Reliable Data Transmission
Purchase the Avago SFH756V optical transmitter online now to enable efficient, reliable optical data transfer for fiber optic networks, industrial electronics, and complex electronic systems. This high-quality component provides excellent linearity, easy coupling, and a long operational life, making it an essential part for engineers and technicians. Secure your supply today and benefit from fast shipping and expert support, ensuring your projects stay on schedule and perform at their best with this reliable, cost-effective optical transmitter.
Order your Avago SFH756V optical transmitter today and ensure dependable data transmission in fiber optic and industrial projects with ease.
