BROADCOM SP000063855 Optical Receiver Diode
The SFH551/1-1V is a 650 nm digital receiver diode designed for optical data transmission with polymer optical fiber. It features a built-in silicon photodiode and transimpedance amplifier, providing a TTL open-collector output stage. The V-housing with axial locking screw allows easy coupling to unconnectorized 2.2 mm fiber, integrated with a molded microlens for efficient light coupling. Its black housing minimizes ambient light interference, suitable for industrial, communication, and consumer electronics applications. The device supports data rates up to 5 MBd and is auto-insertable and wave solderable, ensuring reliable performance.
BROADCOM SP000063855 Optical Receiver Diode Specifications:
- Wavelength: 700 nm maximum sensitivity, 600-780 nm spectral range
- Supply Voltage Range: 4 V to 15 V, typical 5 V
- Maximum Input Power: -22 dBm (typical), 4 dBm max at 650 nm
- Propagation Delay: 120 ns at 5 MBd, typical
- Pulse Width Distortion: 140 ns at 5 MBd
- Output Voltage at Logic ‘0’: 0.2 V to 0.6 V
- Output Voltage at Logic ‘1’: Vec -0.6 V to Vec -0.3 V
- Switching Times: Rise time 14–30 ns, Fall time 4–15 ns
- Maximum Photosensitivity Wavelength: 700 nm, spectral range 600–780 nm
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Power Dissipation: 100 mW, Output Current: 50 mA
- Electrostatic Discharge Capability: 2000 V (HBM), 400 V (MM)
- Mechanical: 2.2 mm aperture, molded microlens, V-housing with axial screw
- Mounting: Solderable pins, 20 N retention force
- Connector Housing: Light-tight, interference-free, color-coded black

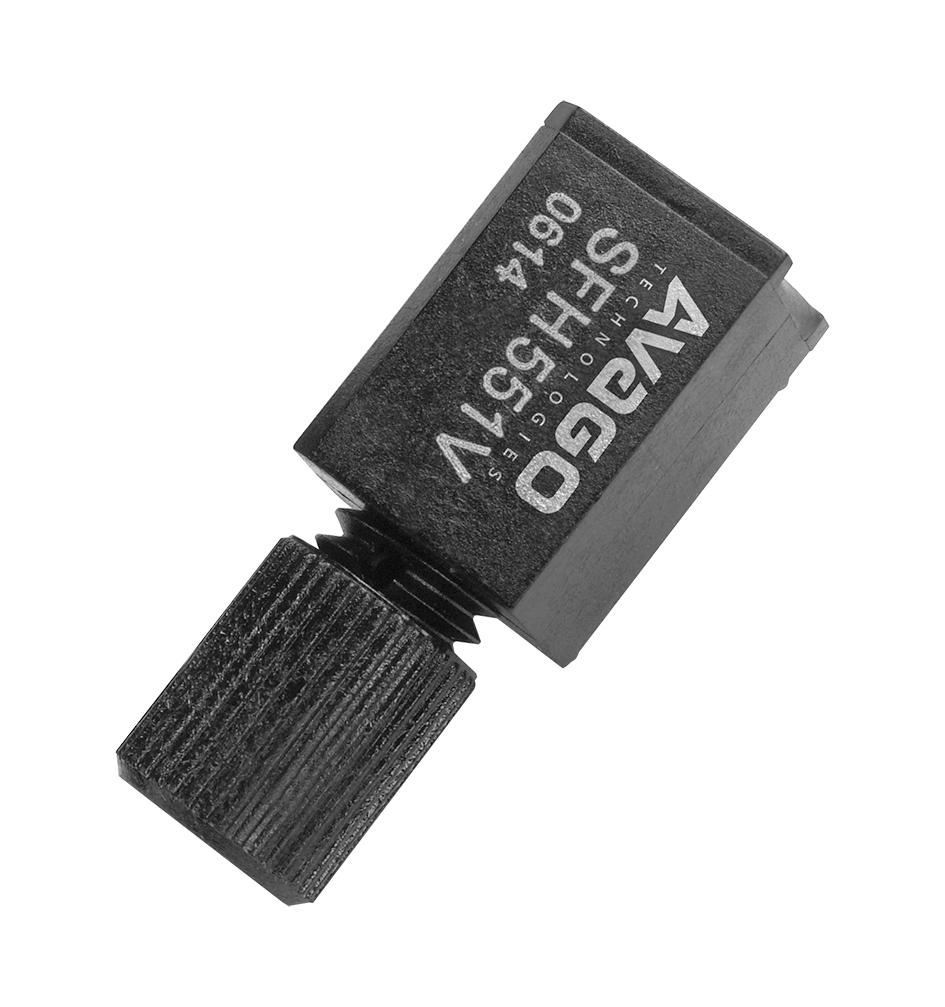

Buy the Buy Avago SFH551/1-1V Part Number SP000063855 Online
Purchase the Avago SFH551/1-1V optical receiver diode online today. Designed for high-speed data transmission with polymer optical fiber, it features a built-in photodiode, a TTL output, and easy V-housing coupling with axial locking screw. Supporting up to 5 MBd, it ensures reliable operation in industrial, networking, and consumer electronics applications. The device's molded microlens provides efficient light coupling, and its light-tight housing reduces crosstalk. Perfect for modern optical communication systems, order now for quick delivery and long-lasting performance.
Get Avago SFH551/1-1V today—built for reliable optical data transmission with easy fiber coupling and high-speed performance.
Frequently Asked Questions
Where can I buy BROADCOM SP000063855?
You can click on the BUY or RFQ button to purchase SP000063855 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part SP000063855?
You can download the SP000063855 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of SP000063855?
BROADCOM
