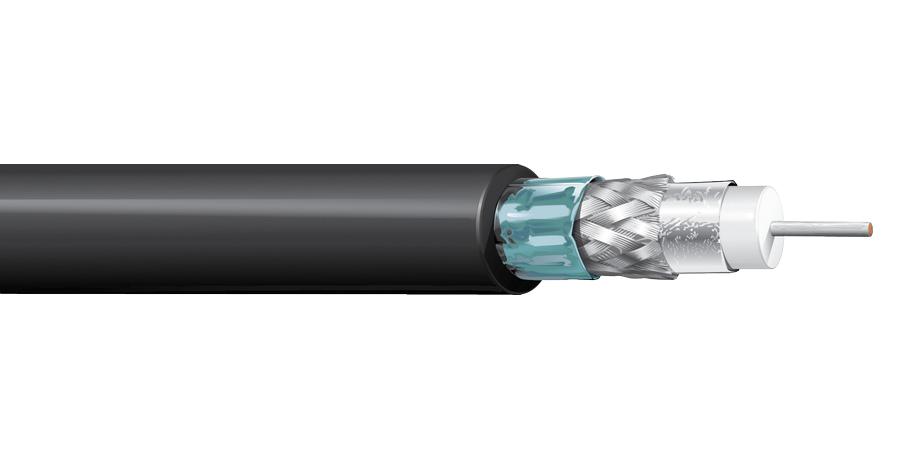

BELDEN 4731R0101000 High-Definition Video Coaxial Cable
The Belden 4731R coaxial cable features a 12 GHz bandwidth suitable for high-definition video signals like SMPTE 2082-1 12 Gb/s UHDTV and SDI applications. It comprises a solid 14 AWG silver-plated copper conductor, with gas-injected foam HDPE insulation and a durable PVC jacket. Designed for outdoor aerial and indoor environments, it offers excellent impedance stability, low return loss, and UV resistance. This cable supports 75 Ohm impedance, with key electrical characteristics including a capacitance of 15.5 pF/ft and a voltage rating of 300 VRMS, making it ideal for professional broadcast and video distribution systems.
BELDEN 4731R0101000 High-Definition Video Coaxial Cable Specifications:
- Conductor: Silver-plated copper, 14 AWG, 0.064 inch diameter
- Insulation: Gas-injected foam HDPE, 280 mil thick
- Jacket: PVC, 0.400 inch thickness
- Impedance: 75 Ohm
- Capacitance: 15.5 pF/ft
- Return Loss: 23 dB at 5MHz-1600MHz, 21 dB at 1600MHz-4500MHz, 15 dB at 4500MHz-12000MHz
- Voltage Rating: 300 VRMS
- Operating Temperature: -30°C to +75°C
- UV Resistance: Yes
- Max Pulling Tension: 145 lbs
- Bend Radius: Minimum 4 inches
- Standards: UL1666, NEC (UL), CEC (UL), Series 11 type RG-11/U, plenum: No
- Environmental Space: Outdoor - Aerial, Indoor, Outdoor
- Applicable Regulations: RoHS, WEEE, EU ELV, Prop 65
- Color: Black
- Series: Series 11
- Applicable for high-definition video, UHDTV, SDI, and broadcast systems
Buy the Buy Belden 4731R Part Number 4731R0101000 Online
Discover the reliable and high-performance Belden 4731R coaxial cable, ideal for professional broadcast and UHDTV systems. Featuring 12 GHz bandwidth, 75 Ohm impedance, low return loss, and excellent shielding, this cable ensures clear signal transmission in outdoor aerial and indoor environments. Its durable PVC jacket offers UV resistance and long-term stability. Perfect for high-definition video distribution, SMPTE-compliant applications, and demanding broadcast setups, this coaxial cable guarantees top-tier performance and easy online purchasing convenience.
Buy Belden 4731R coaxial cable now and experience unmatched reliability and performance in high-definition video transmission.
Frequently Asked Questions
Where can I buy BELDEN 4731R0101000?
You can click on the BUY or RFQ button to purchase 4731R0101000 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 4731R0101000?
You can download the 4731R0101000 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 4731R0101000?
BELDEN
