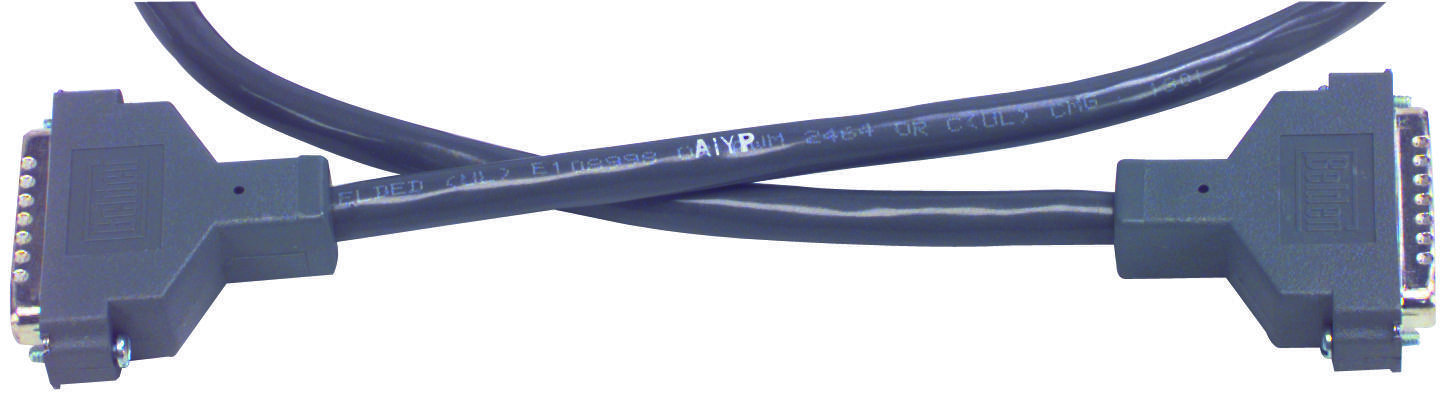

BELDEN 49675A060S2 25 ft D-Sub Cable
The Belden 49675A 060S2 is a 25-foot D-Subminiature assembly cable designed for robust data connectivity. It incorporates 24 AWG stranded (7x32) tinned copper conductors, S-R PVC insulation, a Beldfoil shield for EMI/RFI protection, a PVC jacket, and molded handles. The cable is point-to-point, with the shield connected to the connector shell, ensuring a positive shield-to-ground connection. This cable is suitable for various industrial applications requiring reliable data transmission and secure grounding.
BELDEN 49675A060S2 25 ft D-Sub Cable Specifications:
- Conductor AWG: 24
- Stranding: 7x32
- Conductor Material: TC - Tinned Copper
- Nominal Diameter: 0.339 in
- Number of Conductors: 25
- Insulation Material: S-R PVC - Semi-Rigid Polyvinyl Chloride
- Nominal Wall Thickness: 0.032 in
- Outer Shield Type: Tape
- Outer Shield Material: Aluminum Foil-Polyester Tape
- Shield Coverage: 100 %
- Drainwire Material: TC - Tinned Copper
- Drainwire AWG: 24
- Drainwire Construction: 7x32 mm
- Jacket Material: PVC - Polyvinyl Chloride
- Lay Length: Point to Point
- UL Voltage Rating: 300V RMS (UL AWM Style 2464)
- UL Temp Rating: 80°C (UL AWM Style 2464)
- NEC/UL Specification: CM
- UL AWM Style: UL Style 2464 (300 V 80°C)
- EU Directive Compliance: EU Directive 2003/11/EC (BFR)
- CA Prop 65: Yes
- MII Order #39: Yes
- Plenum: No
- Color: CHROME
