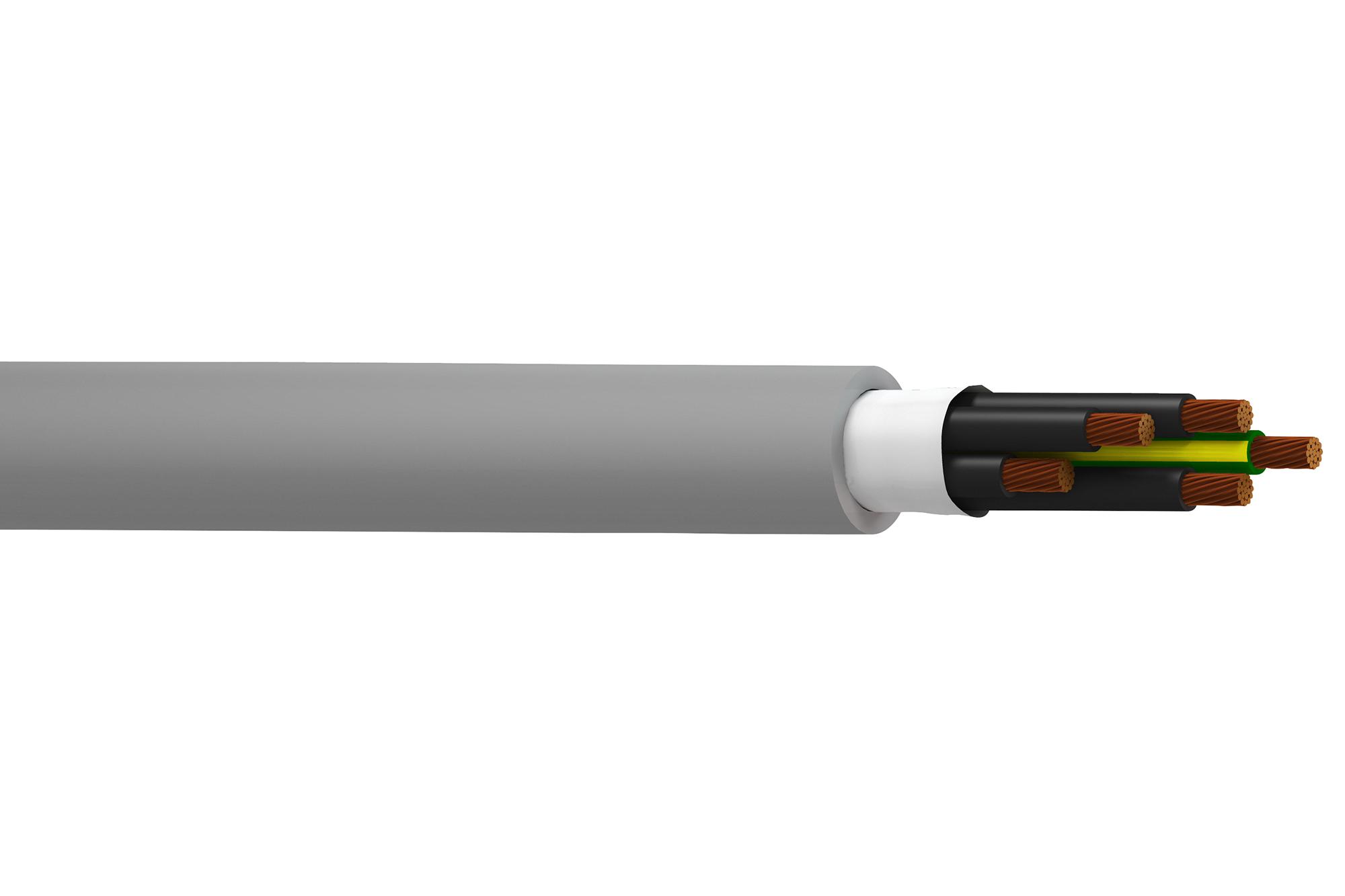

BELDEN 73204W0081000 Multi-Conductor Cable
The 73204W multi-conductor cable is a 600V unshielded cable designed for light to moderate flexing applications with a flex cycle rating of up to 1 million cycles. It features 12 AWG stranded bare copper conductors (65x30), PVC insulation, and an oil-resistant PVC jacket, suitable for various industrial and control environments. The cable has an overall diameter of 0.500 inches, with a weight of 374 pounds per 1000 feet. It complies with UL, CSA, VDE, and RoHS standards, making it ideal for robust electrical and control systems requiring high flex life and reliable performance.
BELDEN 73204W0081000 Multi-Conductor Cable Specifications:
- Conductor AWG: 12
- Stranding: 65x30
- Material: Bare copper
- Insulation Material: PVC
- Outer Jacket Material: PE (Polyethylene)
- Overall Diameter: 0.500 in.
- PVC Insulation
- Oil-resistant PVC jacket
- Flex cycle rating: 1 million cycles
- Storage Temperature Range: -40°C to +90°C
- Installation Temperature Range: -8°C to +90°C
- Bulk cable weight: 374 lb/1000 ft
- Maximum recommended pull tension: 204 lb
- Minimum bend radius: 2.5 in.
- UL Style: 2587 (600 V)
- CSA: 600 VAWM IA AB
- Flame Test: CSA Flame Test FT
- Suitable for burial
- Meets VDE 0472, RoHS, REACH, and EU Low Voltage Directive standards
Buy the Buy Belden 73204W Multi-Conductor Part Number 73204W0081000 Online
Discover the high-performance Belden Multi-Conductor Cable suitable for demanding industrial applications. Featuring 12 AWG stranded bare copper conductors, PVC insulation, and a durable oil-resistant PVC jacket, this unshielded cable offers high flexibility with a flex life of up to 1 million cycles. Its overall diameter of 0.500 inches and a weight of 374 pounds per 1000 feet make it ideal for sophisticated control systems. Compliant with UL, CSA, RoHS, and VDE standards, ensuring safety and reliability for extensive electrical use.
Get Belden 73204W today—built for durability in high-flex industrial environments.
Frequently Asked Questions
Where can I buy BELDEN 73204W0081000?
You can click on the BUY or RFQ button to purchase 73204W0081000 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 73204W0081000?
You can download the 73204W0081000 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 73204W0081000?
BELDEN
