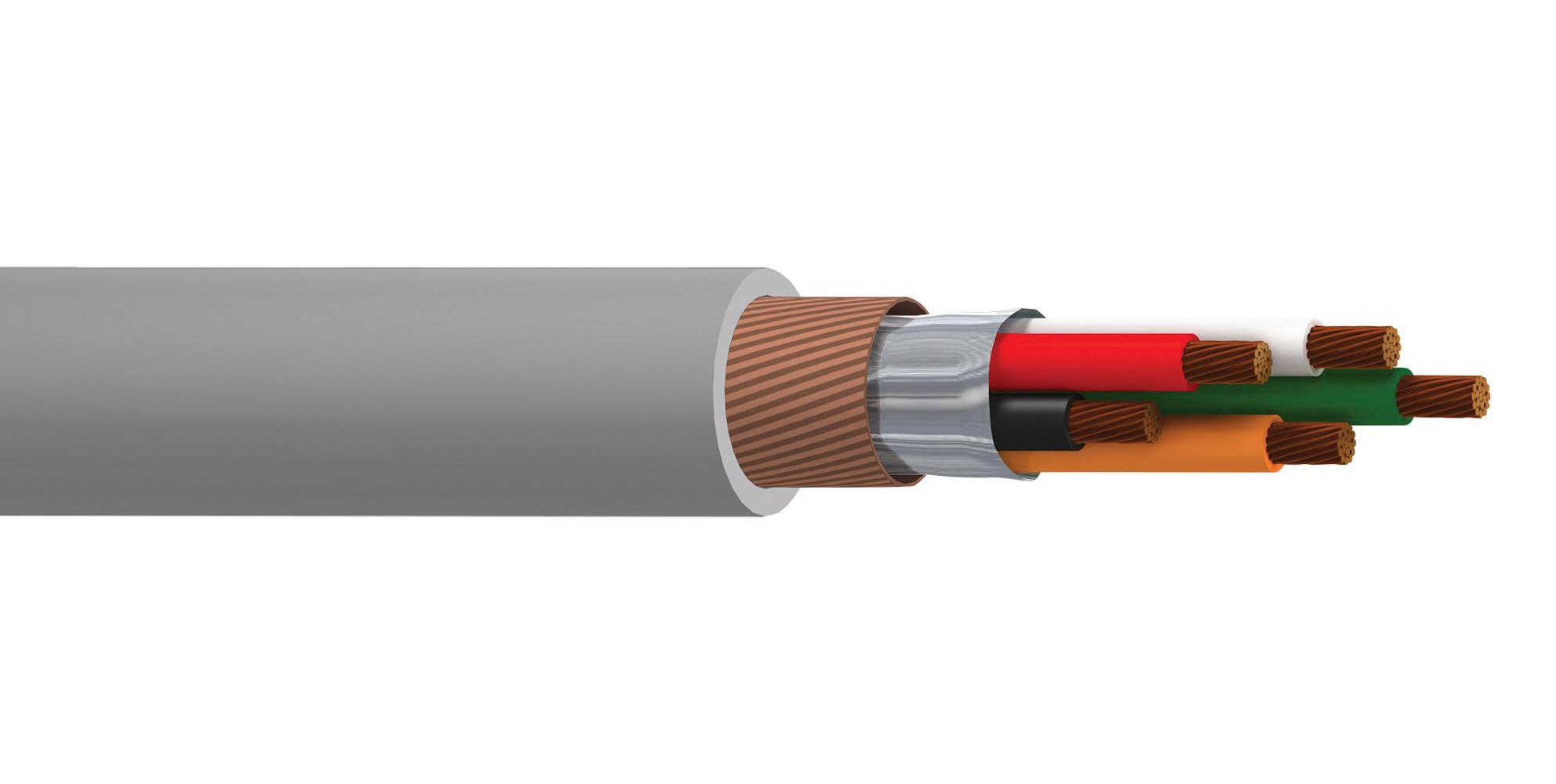

BELDEN 76312WS008100 Multi-Conductor Cable
The Belden 76312WS multi-conductor cable is a versatile solution for data transmission in environments requiring flexibility and durability. Constructed with 22 AWG stranded tinned copper conductors, PVC insulation, and a robust outer jacket, this cable is designed to withstand continuous flexing up to 6 million cycles. The aluminum/polyester foil and tinned copper spiral shields provide excellent electromagnetic interference (EMI) protection, ensuring reliable signal integrity. Ideal for applications such as dynamic data links, robotics, and industrial automation where frequent bending and movement are required.
BELDEN 76312WS008100 Multi-Conductor Cable Specifications:
- Conductor AWG: 22
- Number of Conductors: 12
- Conductor Stranding: 19x34
- Conductor Material: TC - Tinned Copper
- Conductor Diameter (mm): 0.813
- Insulation Material: PVC - Polyvinyl Chloride
- Insulation Wall Thickness (mm): 0.254
- Outer Shield Layer 1 Material: Aluminum/Mylar
- Outer Shield Layer 1 Coverage (%): 100.000
- Outer Shield Layer 2 Material: TC - Tinned Copper
- Outer Shield Layer 2 Coverage (%): 90.000
- Outer Jacket Material: PVC - Polyvinyl Chloride
- Outer Jacket Wall Thickness (mm): 1.016
- Overall Nominal Diameter (mm): 9.322
- Bulk Cable Weight (Kg/Km): 119.056
- Max Recommended Pulling Tension (N): 351.408
- Min Bend Radius/Minor Axis (mm): 73.660
- Min Bend/Installation (mm): 73.660
- Min Bend Radius (Continuous Flexing) (mm): 73.660
- Flex Cycle Rating: 6 Million Flexes
- NEC/UL Specification: CM
- CEC/C(UL) Specification: CMG
- Operating Temperature Range (static) (°C): 10 to 105
- Operating Temperature Range (dynamic) (°C): 5 to 105
- Nominal Inductance (µH/m): 0.558
- Nominal Capacitance Conductor to Conductor (pF/m): 0.001 @ 124.678 MHz
- Nominal Conductor DC Resistance (Ohm/km): 50.856
- Nominal Outer Shield DC Resistance (Ohm/km): 9.187
- Max Operating Voltage (UL): 300V
