BELDEN 77807WS0101000 Flexible Shielded Cable
The Belden 77807WS multi-conductor cable is designed for continuous flexing applications up to 14 million flex cycles. It features 18 AWG stranded bare copper conductors with PVC insulation, an oil-resistant inner jacket, and a tinned copper braid shield with 85% coverage. The cable has an overall diameter of 13.513 mm, weighs approximately 511.941 Kg/km, and meets UL, CSA, and EU standards including RoHS and REACH compliance. Suitable for industrial automation, signal transmission, and flexible wiring environments, ensuring durability and reliable performance in demanding conditions.
BELDEN 77807WS0101000 Flexible Shielded Cable Specifications:
- Conductors: 18 AWG stranded bare copper (105x38), PVC insulation, oil-resistant PVC inner jacket, tinned copper braid shield with 85% coverage
- Number of Conductors: 7, Ground Wire included (18 AWG, PVC insulated, 105x38, bare copper)
- Outer Diameter: 13.513 mm, Weight: 511.941 Kg/km, Max Pulling Tension: 467.061 N
- Temperature Range: Storage -40°C to +90°C, Flexing -8°C to +90°C, Operating -8°C to +90°C
- Minimum Bend Radius: 109.220 mm, Flex Cycle Rating: Up to 14 million flexes
- Material: PVC, Shield: Tinned copper braid, Outer Jacket: PVC, Flame Test: CSA FT
- Standards & Compliance: UL, CSA, VDE, RoHS, REACH, EU Low Voltage Directive, California Prop 65
- Overall cable length and specifications are designed for durability, flexibility, and reliable signal transmission in industrial environments.

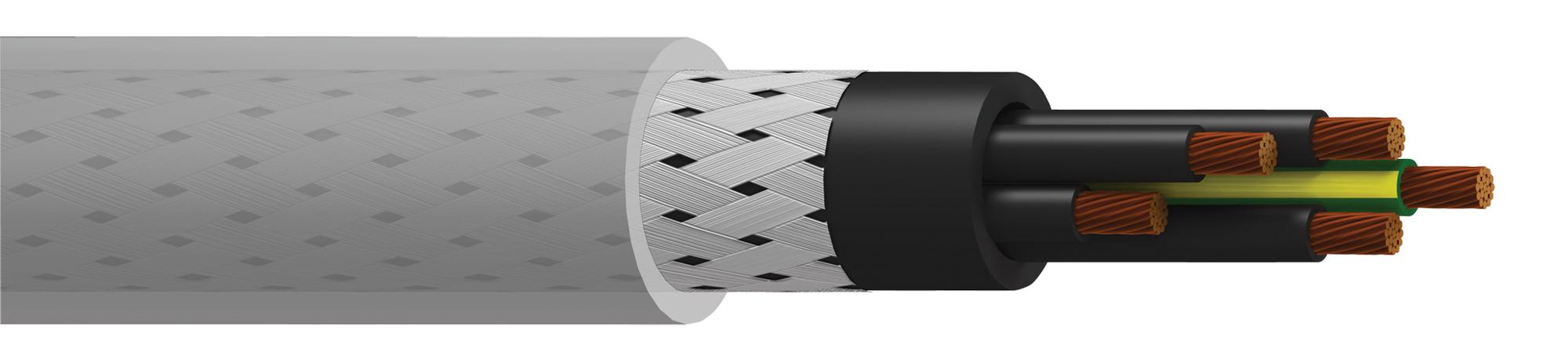

Buy the Buy Belden Cable Part Number 77807WS0101000 Online
Order the Belden 77807WS flexible shielded cable online today for durable performance in continuous flexing environments. With 18 AWG copper conductors, oil-resistant PVC insulation, and 85% copper braid shielding, this cable is perfect for industrial digital and analog signal transmission. It withstands up to 14 million flex cycles, features a diameter of 13.513 mm, and complies with UL, CSA, RoHS, and REACH standards. Ensure your automation system’s reliability by purchasing this high-quality, UL-listed cable directly from our online store for fast and secure delivery.
Buy Belden 77807WS cable now and ensure reliable, flexible signal transmission for demanding industrial applications.
