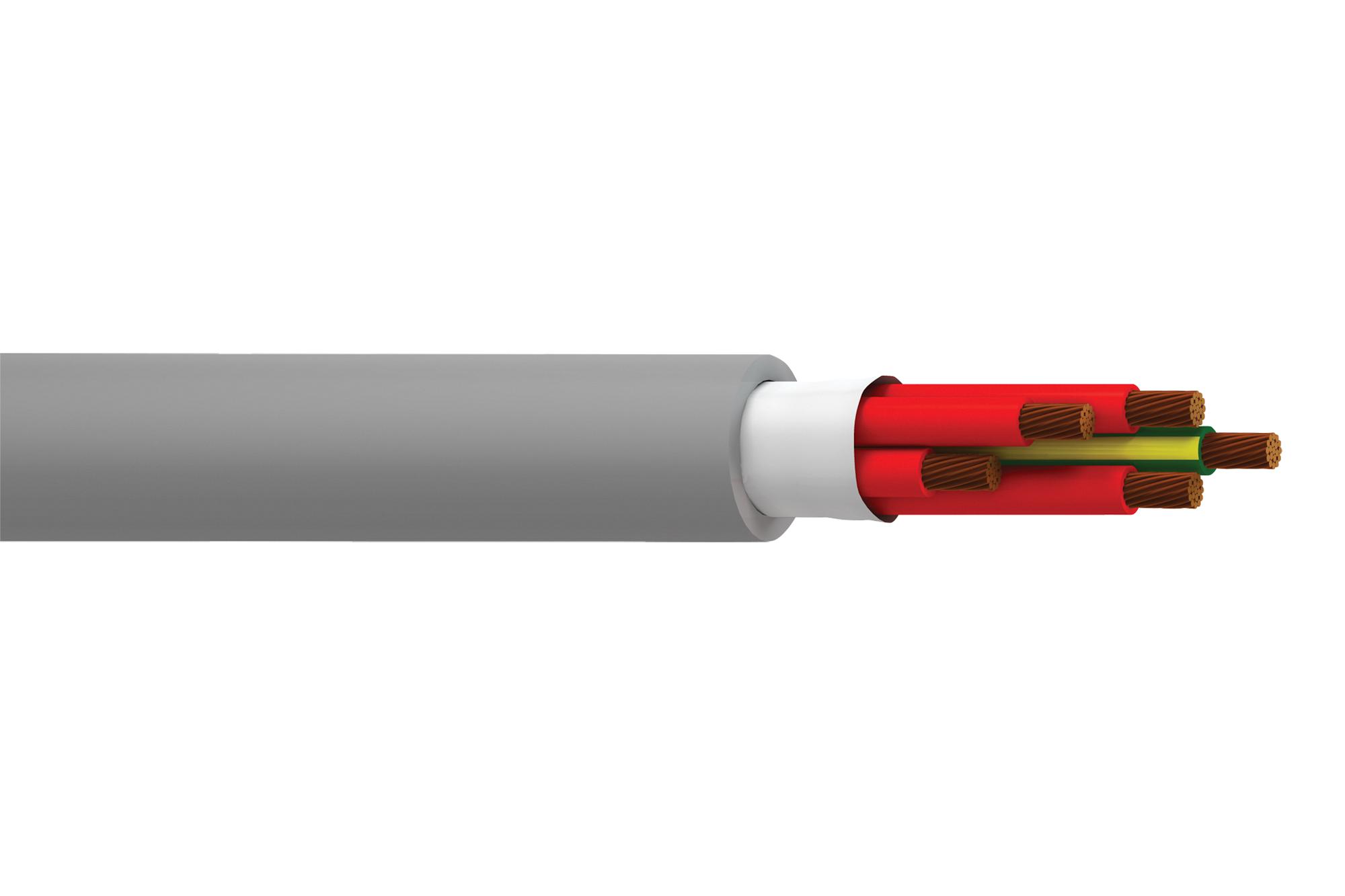

BELDEN 77812W010100 Multi-Conductor Flexible Cable
The Belden 77812W Multi-Conductor cable is a 600V unshielded flexible cable designed for continuous flexing applications with an impressive lifespan of up to 14 million flex cycles. It features 18 AWG stranded bare copper conductors insulated with PVC, with an overall PVC jacket for oil resistance and durability. Suitable for industrial environments, it supports a wide temperature range from -40°C to +90°C, including flexing conditions from -8°C. Its physical specifications include an overall diameter of 13.208 mm, bulk weight of 505.516 kg/km, and a maximum pulling tension of 702.816 N, making it ideal for demanding cable management and automation tasks.
BELDEN 77812W010100 Multi-Conductor Flexible Cable Specifications:
- Conductor: 18 AWG stranded (105x38) bare copper
- Insulation Material: PVC
- Outer Jacket Material: PVC
- Overall Diameter: 13.208 mm
- Bulk Weight: 505.516 Kg/km
- Max Pulling Tension: 702.816 N
- Temperature Range: -40°C to +90°C (storage), -8°C to +90°C (flexing)
- Flex Cycle Rating: 14 million flexes
- Applicable Standards: UL 2587, CSA 600V, RoHS II compliant
- Other Certifications: FT1 flame test, EU Low Voltage Directive 2014/35/EC
- Nominal Capacitance: 101.711 pF/m
- Nominal DC Resistance: (specify value if available)
Buy the Belden Series 77812W Multi-Conductor: 600V Unshielded Flex Cable
Order the Belden 77812W multi-conductor flexible cable online today and benefit from a durable, oil-resistant design capable of withstanding up to 14 million flex cycles. Perfect for continuous flexing applications, this 600V unshielded cable features 18 AWG stranded copper conductors with PVC insulation and jacket, ensuring high performance in industrial environments. Its broad temperature range and certification compliance make it a reliable choice for automation, machinery, and control systems. Purchase now and ensure your project has the dependable wiring solution it needs.
Buy Belden 77812W now and experience unmatched reliability and high-flex endurance suitable for industrial automation and demanding applications.
Frequently Asked Questions
Where can I buy BELDEN 77812W010100?
You can click on the BUY or RFQ button to purchase 77812W010100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 77812W010100?
You can download the 77812W010100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 77812W010100?
BELDEN
