BELDEN 87230030 Signal Cable

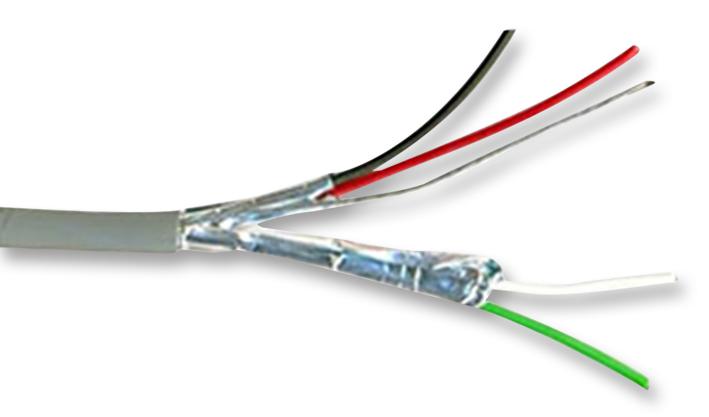

The 8723 060U100 is a 100-foot, 2-pair, 4-conductor shielded cable with 22 AWG stranded (7 x 30) tinned copper conductors, polypropylene insulation, and a Beldfoil® aluminum foil-polyester shield providing 100% coverage. It includes a 24 AWG tinned copper drain wire and a chrome PVC jacket. Designed for low-voltage analog data and signal transmission, it connects controllers, sensors, relays, valves, and alarms within enclosures. It has an impedance of approximately 52 ohms, detailed capacitance values, and UL1685 flame test approval, ensuring reliable performance in demanding electrical environments.
BELDEN 87230030 Signal Cable Specifications:
- Conductor Count: 4
- Conductor Size: 22 AWG
- Insulation: Polypropylene, 0.009 in thick
- Shield Material: Aluminum Foil-Polyester Beldfoil® (100% coverage)
- Drain Wire: 24 AWG stranded tinned copper
- Jacket Material: PVC, chrome finish
- Overall Length: 100 feet
- Impedance: approximately 52 ohms
- Capacitance: 108.27 pF/ft (conductor to conductor), 203.42 pF/ft (conductor to shield)
- DC Resistance: 48.23 ohms/km at 20°C
- Temperature Range: -20°C to +75°C
- UL Rating: UL1685
- Flammability: Flame tested
- Applicable Standards: NEC 800, UL CM, IEC 60332-1-2
- Application: Low-voltage analog data, sensors, relays, alarms
Buy the Belden 8723 060U100 – Reliable Signal Cable for Industrial Applications
Enhance your industrial communication systems with the Belden 8723 060U100 signal cable, featuring 22 AWG stranded conductors, polypropylene insulation, and foil shielding. Designed for low-voltage data and sensor connections, this 100-foot cable provides superior signal integrity and protection, complying with UL1685 flame standards. Its durable PVC jacket ensures excellent environmental resistance, and its detailed specifications guarantee reliable performance under demanding conditions. Perfect for connecting controllers, relays, alarms, and instrumentation within industrial enclosures, ensuring operational efficiency and safety.
Order your Belden Series 8723 060U100 indicating shielded low-voltage data cable today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy BELDEN 87230030?
You can click on the BUY or RFQ button to purchase 87230030 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 87230030?
You can download the 87230030 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 87230030?
BELDEN
