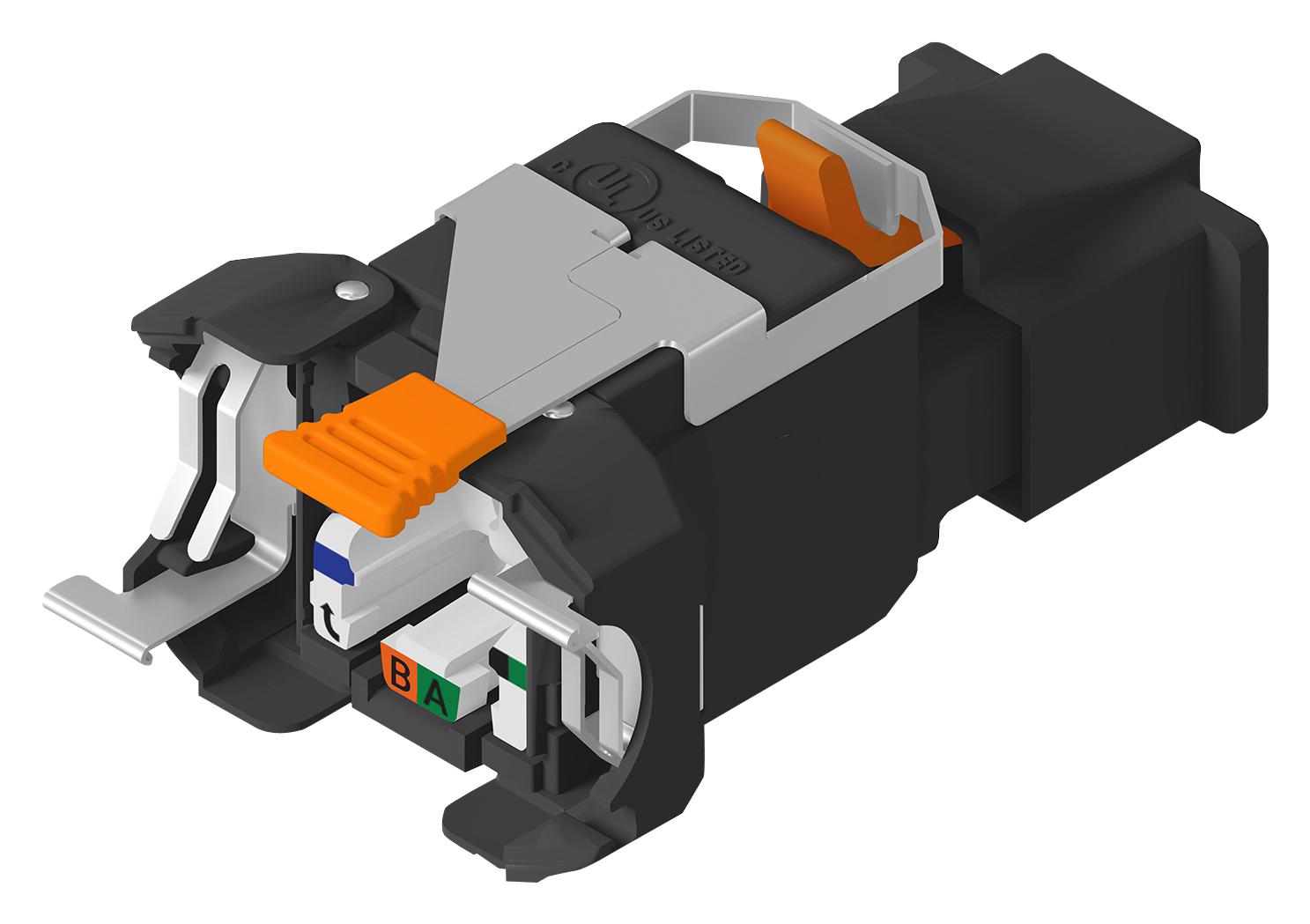

BELDEN RVAIP2UBKB24 Network Connector
The industrial REVConnect 10GX UTP field mount plug in black offers high-performance connectivity suitable for Category 6A and ISO Class EA applications. It features a rugged polycarbonate body with UL94V-0 flammability rating, gold-plated contacts over palladium/nickel for reliable signal transmission, and is compatible with REVConnect termination tools. Designed to withstand temperatures from -40°C to +70°C, it provides impressive retention force, UL safety certification, and supports Power over Ethernet (PoE) standards up to 100W. Ideal for data center and network infrastructure installation requiring durability and high-speed transmission.
BELDEN RVAIP2UBKB24 Network Connector Specifications:
- Dimensions: Not specified
- Connector Body: Polycarbonate UL94V-0
- Contacts: Gold plated over Palladium/Nickel
- Weight: 0.016 lbs.
- Temperature Range: -40°C to +70°C (storage, operation, installation)
- UL Rating: UL94V-0
- Power Over Ethernet: IEEE 802.3at, IEEE 802.3bU/D1.7, IEEE 802.3bt (up to 100W)
- Mechanical Retention: 20 lbs. connector hardware, 11.250 lbs. plug retention
- Dielectric strength: 1,000 V RMS @ 60 Hz for 1 minute
- Insulation Resistance: 500 M-Ohm minimum
- Max. Contact Resistance: 20 m-Ohm
- Termination Compatibility: REVConnect tool
- Flame Resistance: UL2043 Air Handling Spaces
- Certifications: UL, cULus Listed, RoHS compliant
- Standards: TIA 568.C.2 Category 6A, IEC 60603-7, FCC part 68-F
Buy the Belden RVAIP2UBK – Reliable Network Connector for Industrial Applications
Purchase the Belden RVAIP2UBK industrial REVConnect plug online today and ensure your network installations are reliable, high-speed, and compliant with industry standards. This rugged connector features a UL94V-0 polycarbonate body, gold-plated contacts for optimal signal integrity, and supports PoE up to 100W. Suitable for Category 6A and ISO Class EA applications, it withstands harsh environments with a temperature range of -40°C to +70°C. Easy to install with REVConnect termination tools, ensuring fast, secure connections for your data and power needs.
Order your Belden Series RVAIP2UBK industrial REVConnect plug today and enhance your network with durable, high-performance Ethernet connectivity.
Frequently Asked Questions
Where can I buy BELDEN RVAIP2UBKB24?
You can click on the BUY or RFQ button to purchase RVAIP2UBKB24 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part RVAIP2UBKB24?
You can download the RVAIP2UBKB24 datasheet or visit the BELDEN website for support.
Who is the manufacturer of RVAIP2UBKB24?
BELDEN
