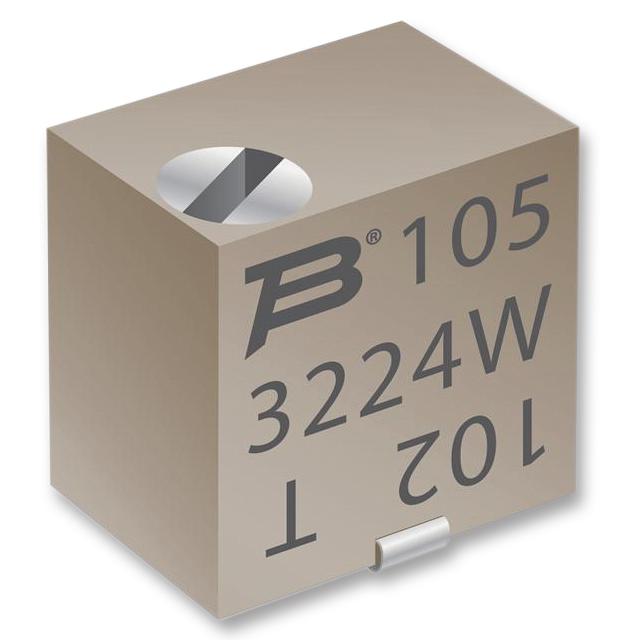

Bourns 3224X1202E Surface Mount Trimmer
The 3224X1202E is a 4 mm surface-mount trimmer potentiometer designed for precise resistance adjustments in electronic circuits. It features a sealed, halogen-free construction compliant with RoHS standards, and offers a wide resistance range from 1.10 to 2 megaohms. With top and side adjustment options, the device includes a durable stainless steel shaft, and meets industry standards for shock, vibration, and temperature stability. Ideal for fine-tuning applications in industrial automation, control systems, and electronic calibration, ensuring reliability and consistent performance in demanding environments.
Bourns 3224X1202E Surface Mount Trimmer Specifications:
- Resistance Range: 1.10 to 2 megaohms
- Resistance Tolerance: ±8%
- Contact Resistance Variation: Max 3 ohms or 1%
- Power Rating: 300 volts max at 85°C, 1,000 hours at 150°C
- Temperature Range: -55°C to +150°C
- Temperature Coefficient: -100 ppm/°C
- Insulation Resistance: Min 400 megohms at 500 VDC
- Adjustment: 12 turns nominal, with adjustment slot
- Dimensions: 4 mm square surface mount footprint, length varies with model, typical shaft diameter 0.059 inch
- Sealing: Fully sealed to withstand board wash, meets industry standards
- Compliance: RoHS compliant, halogen-free, UL94V0 rated
- Package: Embossed tape reel, 250, 600, 850, 1500 pieces per reel depending on style
- Environmental: Meets Mil-Std-202, vibration, and thermal stability requirements
Buy the Buy Bourns 3224X1202E Part Number 3224X1202E Online
Get your Bourns 3224X1202E surface mount trimmer potentiometer today online for fast delivery and trusted quality. Designed for precise resistance adjustments, it features a sealed, RoHS compliant construction suitable for industrial applications. Its compact 4 mm footprint allows easy integration into various electronic circuits, while the wide resistance range from 1.10Ω to 2MΩ ensures versatile performance. Perfect for calibration, fine-tuning, and control systems, this high-performance component guarantees durability, stability, and reliable operation in demanding environments. Purchase now for efficient project customization.
Order your Bourns series 3224X1202E sealed trimmer potentiometer today and ensure precise resistance tuning with reliable industrial-grade performance.
Frequently Asked Questions
Where can I buy Bourns 3224X1202E?
You can click on the BUY or RFQ button to purchase 3224X1202E from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3224X1202E?
You can download the 3224X1202E datasheet or visit the Bourns website for support.
Who is the manufacturer of 3224X1202E?
Bourns
