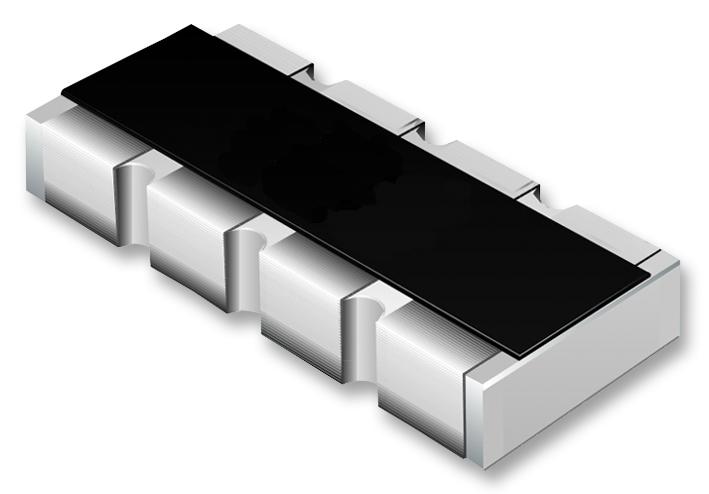

Bourns CAY161002F4LF Chip Resistor Array
The Bourns CAY16 series chip resistor arrays are designed for applications requiring multiple resistor elements in a compact form factor. These arrays offer a range of configurations, including 2, 4, or 8 isolated elements, with resistance values from 10 ohms to 1 megohm. The CAY16 variant features convex terminations, providing enhanced solderability and reliability. They are commonly used in power management circuits, LED lighting, and other electronic devices where space is limited and precise resistance values are needed. The RoHS compliant design ensures environmental compatibility.
Bourns CAY161002F4LF Chip Resistor Array Specifications:
- Short Time Overload: ±2 % +0.1 ohm
- SolderingHeat: ±2 % +0.1 ohm
- Temperature Cycling: ±1 % + 0.1 ohm
- Moisture Load Life: ±3 % +0.1 ohm
- Load Life: ±3 % +0.1 ohm
- Number of Elements: 2 (J2), 4 (F4, J4), 8 (F8, J8)
- Power Rating Per Resistor @ 70 °C: 0.0625 W
- Package Power Rating @ 70 °C: 0.250 W (0.125 W for J2)
- Temperature Coefficient of Resistance: ±200 PPM/°C
- Resistance Tolerance: ±1 %, ±5 %
- Resistance Range: 10 ohms - 1 megohm
- Max. Working Voltage: 50 V (25 V for CAY16-J8)
- Max. Overload Voltage: 100 V (50 V for CAY16-J8)
- Operating Temp. Range: -55 °C - 125 °C
Buy the CAY16-1002F4LF BOURNS Chip Resistor Array | myMectronic
Purchase the Bourns CAY16-1002F4LF Chip Resistor Array securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Bourns CAY161002F4LF?
You can click on the BUY or RFQ button to purchase CAY161002F4LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part CAY161002F4LF?
You can download the CAY161002F4LF datasheet or visit the Bourns website for support.
Who is the manufacturer of CAY161002F4LF?
Bourns
