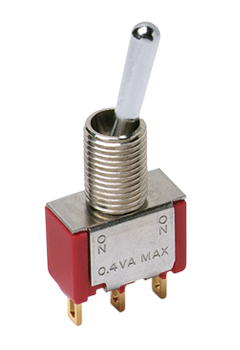

C&K COMPONENTS 7205T2PZGE Miniature Toggle Switch
The C&K Components 7205T2PZGE is a miniature toggle switch designed for versatility and reliability in a compact form factor. Featuring a wide array of actuator and termination options, this switch caters to diverse industrial needs. Its epoxy terminal seal ensures compatibility with bottom wash cleaning processes, enhancing its suitability for automated manufacturing environments. Commonly used in telecommunications, instrumentation, and medical equipment, the 7205T2PZGE provides robust switching functionality with a focus on durability and ease of integration.
C&K COMPONENTS 7205T2PZGE Miniature Toggle Switch Specifications:
- Dielectric Strength: 1000 Vrms min. @ sea level
- Operating Temperature: -30ºC to 85ºC
- Contact Rating: B contact material: 0.4 VA max. @ 20 V AC or DC max; Q contact material: 5 AMPS @ 120 V AC or 28 V DC; 2 AMPS @ 250 V AC
- Electrical Life: 7X01 and UX1 models: 100,000 make-and-break cycles at full load; All other models: 40,000 cycles
- Solderability: Per MIL-STD-202F method 208D, or EIA RS-186E method 9 (1 hour steam aging)
- Contact Resistance: Below 10 m Ω typ. initial @ 2-4 V DC, 100 mA, for both silver and gold plated contacts
- Insulation Resistance: 10[9] Ω min.
Buy the 7205T2PZGE C&K COMPONENTS Miniature Toggle Switch | myMectronic
Securely purchase the C&K Components 7205T2PZGE miniature toggle switch online for reliable performance and fast delivery.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS 7205T2PZGE?
You can click on the BUY or RFQ button to purchase 7205T2PZGE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part 7205T2PZGE?
You can download the 7205T2PZGE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of 7205T2PZGE?
C&K COMPONENTS
