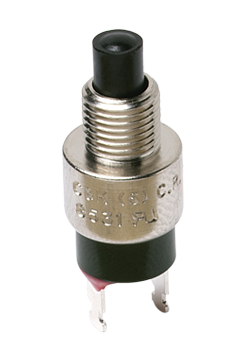

C&K COMPONENTS 8533TZGE2 Subminiature Pushbutton Switch
The C&K COMPONENTS 8533TZGE2 is a subminiature pushbutton switch offering a compact and reliable solution for diverse applications. This switch is designed with a reliable contact design and is RoHS compliant, ensuring environmental responsibility. It is suitable for use in telecommunications equipment, computers, and peripherals. The switch is available with various options including plunger height, termination types, and cap/frame colors, allowing for customization to meet specific design requirements. With a robust construction and a wide range of configurations, the 8533TZGE2 provides dependable performance in demanding environments.
C&K COMPONENTS 8533TZGE2 Subminiature Pushbutton Switch Specifications:
- contact_rating: 1 AMP @ 120 V AC or 28 V DC (853X Models); 3 AMPS @ 120 V AC or 28 V DC (855X Models)
- case_material: Glass filled phenolic or diallyl phthalate (DAP) (UL 94V-0)
- plunger_material: Phenolic or glass filled polyester (UL94V-0)
- cap_and_frame_material: Nylon
- electrical_life: 250,000 actuations at full load (853X Models); 10,000 actuations at full load (855X Models)
- bushing_material: Brass, nickel plated
- contact_material: Coin silver, silver plated (Q contact material)
- contact_resistance: Below 30 mΩ typ. initial @ 2-4 V DC, 100 mA
- insulation_resistance: 10[9] Ω min.
- terminals_material: Copper alloy, silver plated
- terminal_seal: Epoxy
- dielectric_strength: 1,000 Vrms min. @ sea level
- hardware_material: Brass, nickel plated (Nut); Steel, bright nickel plated (Lockwasher)
- operating_temperature: -30ºC to 65ºC
- torque_specs: 15/32” bushings - 50 in. lbs max; 1/4 -40 bushing types - 12 in. lbs max
