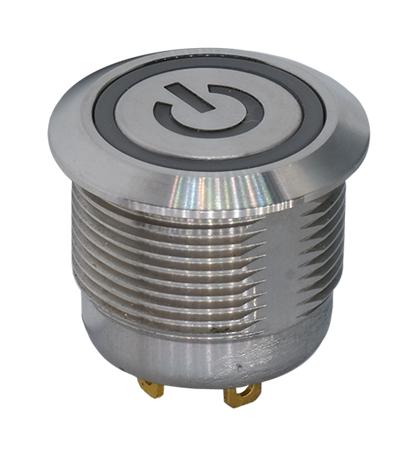

C&K COMPONENTS ATPS19SL0000M0SA04G Anti-Vandal Pushbutton Switch
The ATPS19 Series is an anti-vandal short-body sealed pushbutton switch designed for demanding industrial and security applications. Featuring IP67 sealing and IK10 impact resistance, it offers reliable operation with a mechanical lifespan of 1,000,000 cycles. The switch supports momentary actuation with a rated contact current of 2A at 36V DC, making it suitable for alarm systems, vending machines, parking ticket stations, and control panels. Its stainless steel bushing and robust materials ensure durability in harsh environments, with customizable actuator indicators and LED illumination options.
C&K COMPONENTS ATPS19SL0000M0SA04G Anti-Vandal Pushbutton Switch Specifications:
- FUNCTION: SPST
- CONTACT ARRANGEMENT: N.O.
- MOUNTING TYPE: Threaded front panel mount
- TORQUE FOR THREADED BODY: 11.5 kgf/cm
- Mechanical Life: 1,000,000 cycles
- TOTAL TRAVEL: 1.8 + 0.2 mm
- OPERATING FORCE: 4.5 + 1.5N
- CONTACT RATING: 2A / 36V DC
- ELECTRICAL LIFE: 200,000 cycles at full load
- DIELECTRIC STRENGTH: 2,000 V RMS @ sea level
- INSULATION RESISTANCE: 1,000 MOQ min. @ 500 VDC
- INITIAL CONTACT RESISTANCE: 50 mΩ max @1A 12VDC
- BUSHING: Stainless steel
- BASE: PA66, white (UL 94-VO)
- ACTUATOR: PC, translucent, std steel
- INTERNAL ASSEMBLY: PC, transparent
- SPRING: Steel
- SEALING / O-ring: Silicone
- TERMINALS / CONTACT: Brass, gold flash plated / Brass, silver alloy
- HEX NUT: Brass (Nickel plated)
- OPERATING TEMPERATURE: -20°C to +70°C
- SEALING / PROTECTION: IP67
Buy the Buy Stainless Steel Pushbutton Switch Part Number ATPS19SL0000M0SA04G Online
Secure your industrial and security systems with the durable ATPS19 Series anti-vandal pushbutton switch. Featuring IP67 sealing, IK10 impact resistance, and a 1,000,000 cycle life, it is ideal for use in public access panels, vending machines, parking systems, and safety controls. Its stainless steel bushing ensures long-lasting performance even in challenging environments, while customizable LED indicators and various actuation options provide versatile functionality for demanding applications. Purchase online today for reliable operation and easy installation.
Buy the ATPS19 Series stainless steel sealed pushbutton switch now and experience unmatched reliability and durability in harsh environments.
