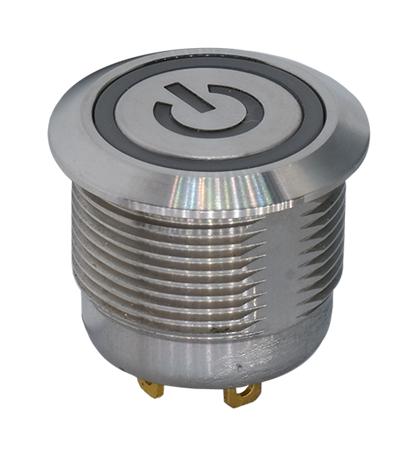

C&K COMPONENTS ATPS19SL5306M4SA04G Pushbutton Switch
The ATPS19 Series anti-vandal short-body sealed pushbutton switch is a robust, IP67 rated device with a stainless steel bushing, designed for safety and security applications. It features a momentary operation with a SPST contact configuration rated at 2A / 36V DC, capable of 1,000,000 mechanical cycles. The switch offers various illumination options, including dual-color LEDs with different voltage ratings, and is suitable for industrial, vending, and public equipment environments. Its durable construction ensures reliability under harsh conditions, with a sealed design to prevent dust and water ingress.
C&K COMPONENTS ATPS19SL5306M4SA04G Pushbutton Switch Specifications:
- Function: SPST
- Contact Arrangement: N.O.
- Mounting Type: Threaded front panel mount
- Torque for Threaded Body: 11.5 kgf/cm
- Mechanical Life: 1,000,000 cycles
- Total Travel: 1.8 + 0.2 mm
- Operating Force: 4.5 + 1.5N
- Contact Rating: 2A / 36V DC
- Electrical Life: 200,000 cycles at full load
- Dielectric Strength: 2,000 V RMS @ sea level
- Insulation Resistance: 1,000 MOQ min. @ 500 VDC
- Initial Contact Resistance: 50 mΩ max. @ 1A 12VDC
- Bushing: Stainless steel
- Base: PA66, white (UL 94-VO)
- Actuator: PC, translucent, standard steel
- Internal Assembly: PC, transparent
- Spring: Steel
- Sealing/O-ring: Silicone
- Terminals/Contact: Brass, gold flash plated / Brass, silver alloy
- Hex Nut: Brass (Nickel plated)
- Operating Temperature: -20°C to +70°C
- Sealing / Protection: IP67
Buy the Buy Industrial Equipment Pushbutton Switch Part Number ATPS19SL5306M4SA04G Online
Order the ATPS19 series stainless steel sealed pushbutton switch online today. This high-quality, IP67 rated switch with dual-color LED illumination ensures reliable operation in harsh conditions. Suitable for industrial, vending, and safety applications, it features a durable stainless steel bushing, 2A/36V DC rating, and a long lifespan of 1,000,000 cycles. Easy to install with threaded mounting, it provides dependable performance in demanding environments. Secure your control systems by purchasing this robust switch online now.
Buy ATPS19 series stainless steel sealed pushbutton switch now and experience unmatched reliability and durability for security and industrial control systems.
Frequently Asked Questions
Where can I buy C&K COMPONENTS ATPS19SL5306M4SA04G?
You can click on the BUY or RFQ button to purchase ATPS19SL5306M4SA04G from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part ATPS19SL5306M4SA04G?
You can download the ATPS19SL5306M4SA04G datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of ATPS19SL5306M4SA04G?
C&K COMPONENTS
