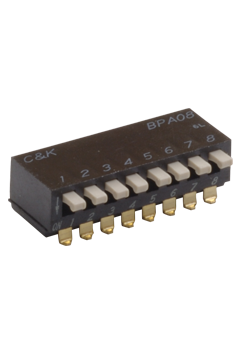

C&K COMPONENTS BPA03B Side Actuated DIP Switch
The C&K BPA Series Side Actuated DIP Switches offer a versatile solution for switching applications. These switches are designed with a side-actuated mechanism and are available in a range of positions, allowing for flexible configuration. The high-pressure contact system ensures reliable performance, even in demanding environments, and the RoHS compliance makes them environmentally friendly. Typical applications include address switching in industrial controls, logic switching in computers and peripherals, and function control in numerous applications. The switches are available in both thru-hole and surface mount configurations, and packaging options include rigid dispensing tubes and tape and reel for SMT models.
C&K COMPONENTS BPA03B Side Actuated DIP Switch Specifications:
- Switch Function: 1 thru 10 and 12 positions available
- Contact Rating: 100 mA max. @ 5 V DC or 25 mA max. @ 24 V DC
- Mechanical and Electrical Life: 1,000 cycles min. @ 5 V DC 10mA
- Contact Resistance: 50 milliohms initial max.
- Insulation Resistance: 100 V DC 100 megohms min.
- Dielectric Withstand Voltage: 300 V AC for 1 minute
- Storage Temperature: -40°C to 85°C
- Operating Temperature: -20°C to 85°C
- Operating Force: 800 grams max.
- Housing Material: PPS, color black (UL94V-0)
- Cover Material: PPS, color black (UL94V-0)
- Actuator Material: PA-6T UL94V-0
- Contact Material: Beryllium Copper with Gold over Nickel plate
- Terminal Material: Brass, Gold over Nickel plate
- Solderability: Flow solderable and washable (soldering: 260°C for 10 sec. max.)
