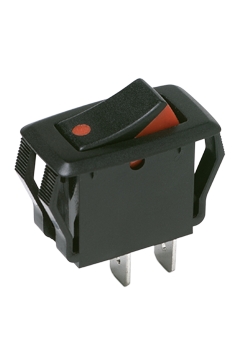

C&K COMPONENTS CG102J11S205QF Single Pole Rocker Switch
The C&K COMPONENTS CG102J11S205QF is a robust single-pole power rocker switch suitable for a wide range of industrial and commercial applications. Constructed with 6/6 nylon housing and silver-plated copper alloy contacts, this switch provides reliable electrical connectivity. It's designed for easy panel mount installation and is available with illuminated options for enhanced visibility. Typical applications include computers, small appliances, instrument panels, and industrial controls. The switch is RoHS compliant, ensuring environmental responsibility. Customization options are available through the Build-A-Switch program, allowing for tailored solutions to meet specific requirements.
C&K COMPONENTS CG102J11S205QF Single Pole Rocker Switch Specifications:
- contact_rating: 16 AMPS @ 125 VAC, 10 AMPS @ 250 VAC
- housing_actuator: 6/6 nylon (UL94V-2), black, matte finish
- illuminated_actuator: Polycarbonate, matte finish
- center_contacts: Silver plated, copper alloy
- end_contacts: Silver plated
- all_terminals: Silver plated, copper alloy
- electrical_life: 10,000 make and break cycles at full load
- insulation_resistance: 10[8] Ω min
- dielectric_strength: 1,500 VRMS @ sea level
- operating_temperature: -20ºC to +85ºC
- switch_function: SPST On-None-Off
- actuator_color_options: Black, White, Red, Two-tone (Black/White, Black/Red)
- mounting_style_options: Snap-in (black, white)
- termination: .250” quick connect
- actuator_marking_options: None, ON-OFF
- lamp_rating_options: No lamp, 125 VAC neon, 250 VAC neon
