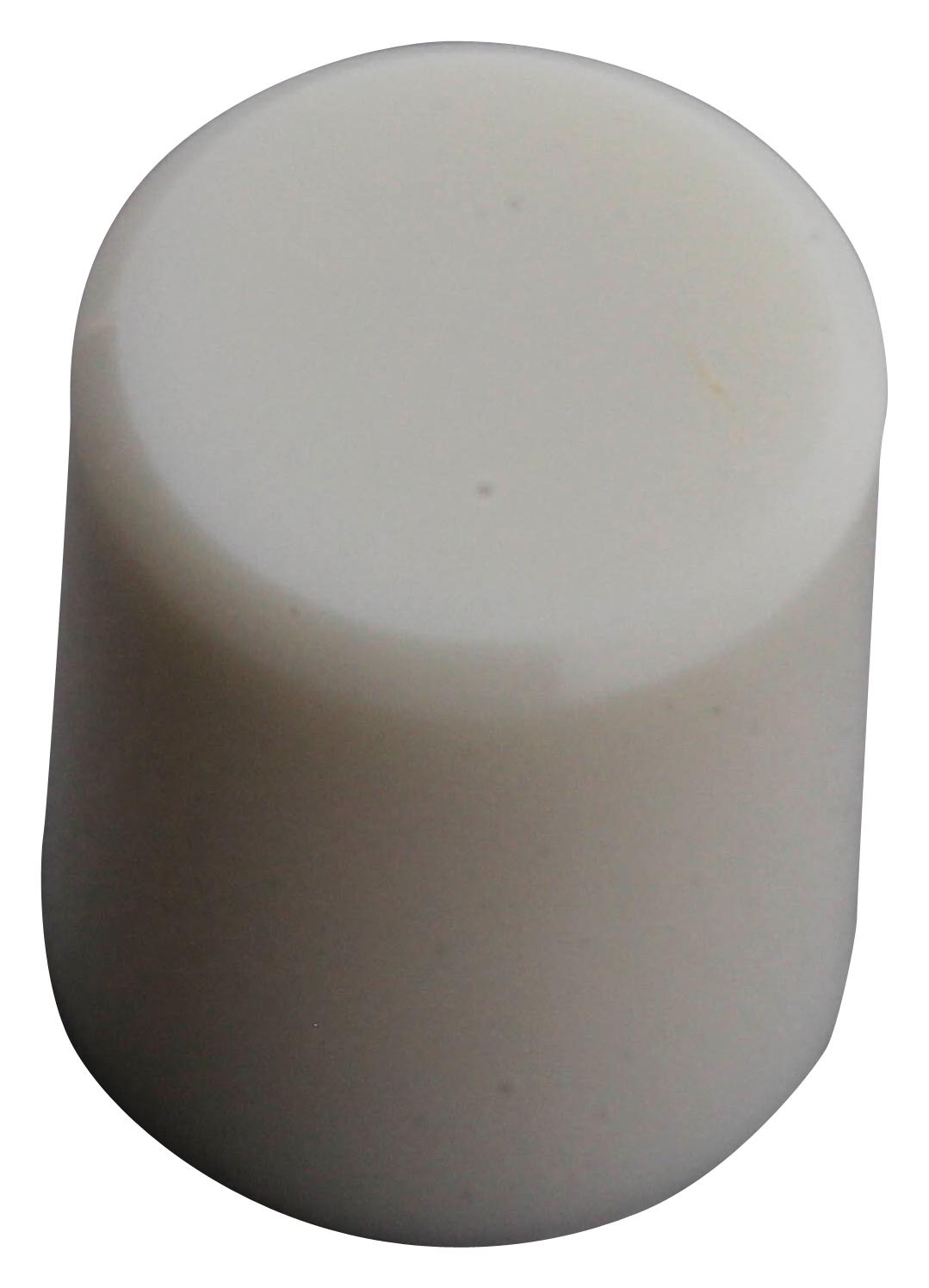

C&K COMPONENTS F0202 Pushbutton Switch
The F Series pushbutton switches are versatile, featuring multiple poles and contact configurations, suitable for audio, medical, and digital interfaces. Constructed with durable polycarbonate housings and gold or silver contacts, they offer reliable switching with high dielectric strength and long operational life. These RoHS-compliant switches support various mounting options, ensuring flexibility in automation, control panels, and interface applications, with robust electrical and mechanical performance. Suitable for both European and North American markets, they include momentary and interlock functions with customizable configurations.
C&K COMPONENTS F0202 Pushbutton Switch Specifications:
- Switching Power: Silver: 50 VA/15 W, Gold: 1 VA/300 mW
- Switching Voltage: Silver: 125/30 V, Gold: 50/30 V
- Switching Current: Silver: 0.54/0.5 A, Gold: 0.04/0.01 A
- Carrying Current: Silver: < 2 A, Gold: < 0.5 A
- Dielectric Strength (50 Hz, 1 min): > 1500 V between chassis/contact and between contacts
- Operating Life: > 105 operations at 24 V/200 mA, > 3.5 x 10^6 operations for extended life
- Contact Resistance: Initial < 10 mΩ, max 20 mΩ; After life < 100 mΩ
- Insulation Resistance: > 210^9 Ω between open contacts, > 210^8 Ω chassis/contact
- Capacitance: < 0.7 pF at 10 kHz
- Total Travel: 4.7 mm, Latching Travel: 3.3 mm
- Materials: Housing - Polycarbonate or Polyester, Contacts - Brass Silver/Gold plated
- Temperature Range: -40°C to 70°C
- Operation Force: 6.5N to 9.0N depending on model
- Dimensions: varies with configuration, typical panel cutout 0.94 inch (24 mm)
Buy the CK Series F Pushbutton: F0202
Order the CK Series F0202 pushbutton switches online today to ensure robust performance in industrial control and automation applications. These switches feature high durability, multiple mounting options, and various contact configurations, making them adaptable for digital, medical, and audio interface equipment. With RoHS compliance and extended operational life, purchasing online provides a quick, secure way to enhance your control systems with high-quality, proven components that meet rigorous industry standards.
Buy CK Series F0202 pushbutton switches now and experience unmatched reliability and performance in your control panels and automation systems.
Frequently Asked Questions
Where can I buy C&K COMPONENTS F0202?
You can click on the BUY or RFQ button to purchase F0202 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part F0202?
You can download the F0202 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of F0202?
C&K COMPONENTS
