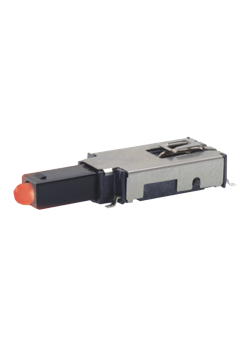

C&K COMPONENTS ELUMOATHQ6C22 Right Angle Latching Pushbutton
The C&K COMPONENTS ELUMOATHQ6C22 is a versatile illuminated latching pushbutton switch within the ELUM series. Designed for right-angle mounting, it offers a low-profile design and reliable self-cleaning contacts, making it suitable for applications in automotive electronics, telecom network equipment, consumer electronics, and professional instrumentation. The switch is RoHS compliant and available with various LED illumination options, providing visual feedback and enhancing user experience. Its robust construction and long operating life ensure reliable performance in demanding environments.
C&K COMPONENTS ELUMOATHQ6C22 Right Angle Latching Pushbutton Specifications:
- Operating Temperature: -40˚C TO 80˚C
- Storage Temperature: -40˚C TO 80˚C
- Relative Humidity: 90% R.H. @ 80˚C
- Operating Life: 30,000 Cycles
- Vibration: Per EIA 186-E Method
- Mechanical Shock: Per EIA 186-E Method 12
- Overload: Withstands 40 N for 1 minute without damage
- Fixed Contacts: Stainless steel, silver plated with gold flash
- Terminals: Stainless steel, silver plated
- Movable Contacts: Copper alloy, silver plated with gold flash
- Base: Glass filled LCP (UL94V-0)
- Actuator: Glass filled nylon 4/6 (UL94V-0)
- Cover: Stainless steel
- Maximum Power: 3.5 VA
- Minimum/Maximum Voltage: 20 mV – 50 VDC
- Minimum/Maximum Current: 0.01 mA – 250 mA
- Dielectric Strength: ≥ 250 Vrms
- Contact Resistance: ≤ 50 mΩ
- Insulation Resistance: ≥ 10[9] Ω
- Bounce Time: ≤1 ms
- Solderability: According to Mil STD 202F Method 208D or EIA RS-186E Method 9
- Lead Free Process Compatibility: 260˚C peak, 10 seconds Max. above 250º C
- Shear Test (Switch/PCB): > 40 N
- Switching Travel: .067” (1.7 mm)
- Latch Travel: .131” (3.6 mm)
- Full Travel: .200” (5.1 mm)
- Operating Force: 2.5 N at Full Travel
- Terminal Style SA (SMT): Tape and reel per EIA 481-2 (450/reel)
- Terminal Style TH (PC): Tray (60/tray)
