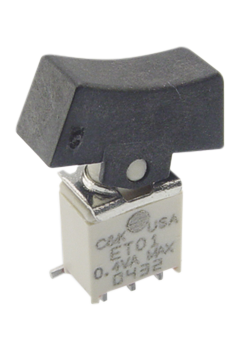

C&K COMPONENTS ET02J1CQE2 Sealed Subminiature Rocker Switch
The C&K COMPONENTS ET02J1CQE2 is a sealed subminiature rocker switch engineered for demanding applications requiring a compact and reliable switching solution. Its sealed design protects against solder and cleaning process contaminants, ensuring consistent performance. Constructed with UL 94V-0 rated materials for enhanced safety and flame retardancy, this switch is suitable for telecommunications equipment, instrumentation panels, computer peripherals, and other critical applications. The switch offers a variety of termination options and actuator colors to meet specific design requirements. Its small footprint saves valuable space while maintaining robust functionality.
C&K COMPONENTS ET02J1CQE2 Sealed Subminiature Rocker Switch Specifications:
- Contact Rating: 0.4 VA max. @ 20 V AC or DC
- Electrical Life: 30,000 cycles (most models), 60,000 cycles (ETX1 models)
- Contact Resistance: Below 20 m Ω typ. initial
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1000 Vrms min. @ sea level
- Operating Temperature: -30ºC to 85ºC
- Solderability: Per MIL-STD-202F method 208D or EIA RS-186E method 9
- Case and Bushing Material: Glass filled nylon 6/6 or 4/6 nylon (UL 94V-0)
- Actuator Material: Nylon (black standard)
- Switch Support Material: Brass, matte-tin plated
- Contact Material (B): Copper alloy, gold plate over nickel plate
- Contact Material (Q): Copper alloy, silver plated
- Terminal Seal Material: Epoxy
Buy the ET02J1CQE2 C&K COMPONENTS Sealed Subminiature Rocker Switch | myMectronic
Purchase the C&K COMPONENTS ET02J1CQE2 securely and efficiently to ensure your project's success.
