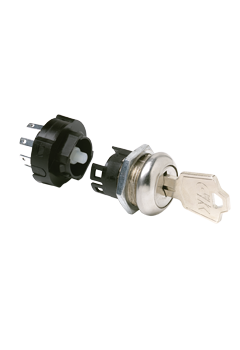

C&K COMPONENTS H20207RR01Q Power Rota-Slide Rotary Switch
The C&K Components H20207RR01Q is a robust power rotary switch designed for a variety of applications including small appliances, industrial equipment, and elevators. It offers multi-pole and multi-position capabilities with a positive detent for reliable operation. The switch is capable of handling power switching up to 12 Amps and is constructed with durable materials like 6/6 nylon housing and silver-plated copper contacts. It is RoHS compliant, ensuring environmental responsibility. The switch's design allows for easy integration into various systems, and its build-a-switch functionality provides flexibility in configuration.
C&K COMPONENTS H20207RR01Q Power Rota-Slide Rotary Switch Specifications:
- Contact Rating: 12 Amps @ 125 V AC; 6 AMPS @ 250 V AC; 1 AMP @ 125 V DC (UL/CSA)
- Electrical Life: 10,000 make-and-break cycles at full load
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1,000 Vrms min. @ sea level
- Indexing: 45º for one contact models, 8 positions max.; two contact models, 4 positions max.
- Housing & Bushing: 6/6 nylon (UL 94V-2)
- Actuator: 6/6 nylon (UL 94V-2)
- Contacts & Terminals: Copper, silver plated
- Contact Spring: Music wire or stainless steel
- Mounting Nut: Steel, zinc plated
- Terminal Seal: Epoxy
- Operating & Storage Temperature: -30ºC to 95ºC
Buy the H20207RR01Q C&K COMPONENTS Power Rota-Slide Rotary Switch | myMectronic
Secure your C&K Components H20207RR01Q Power Rota-Slide Rotary Switch today and ensure reliable power control for your application.
