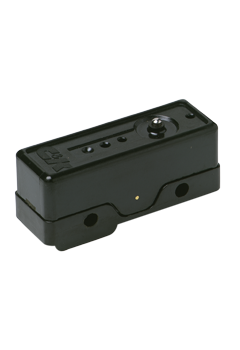

C&K COMPONENTS HBS2KHF9SP041C Snap-Acting Switch
The C&K COMPONENTS HBS2KHF9SP041C is a robust snap-acting switch engineered for demanding industrial environments. Its key features include low differential travel for precise operation, a long mechanical life of 150,000 cycles, and a sealed actuator and case for protection against environmental contaminants. The switch is versatile, accommodating single and double pole circuitry and offering a range of electrical ratings suitable for applications such as thermostats, motors, and industrial control systems. Available with various mounting styles and terminations, the HBS2KHF9SP041C provides a reliable switching solution for diverse applications.
C&K COMPONENTS HBS2KHF9SP041C Snap-Acting Switch Specifications:
- Contact Rating: From low level to 20 AMPS @ 480 V AC
- Electrical Life: 150,000 cycles at 20 AMPS @ 250 V AC
- Insulation Resistance: 1,000 M ohm min
- Dielectric Strength: 1,500 Vrms min. @ sea level
- Operating Temperature: –67ºF to 302ºF (–55ºC to 150ºC)
- Operating Force: From 4 oz. to 26 oz. max
- Mounting Screws Torque: 3 in/lbs max
- Terminal Screws Torque: 4 in/lbs max
- Panel Mounting Bushing Torque: 4-6 in/lbs max
- Degree of Protection: IP65
- Switch Housing Material: Heat resistant/electrical grade phenolic
- Actuator Button Material: Moisture resistant phenolic
- Spring Material: Copper alloy
- Movable Contacts Material: Gold alloy (for ratings 1 AMP or less), Fine silver (for ratings greater than 1 AMP)
- Stationary Contacts Material: Gold alloy (for ratings 1 AMP or less), Fine silver welded to copper base (for ratings greater than 1 AMP)
Buy the HBS2KHF9SP041C C&K COMPONENTS Snap-Acting Switch | myMectronic
Purchase the C&K COMPONENTS HBS2KHF9SP041C securely and efficiently for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS HBS2KHF9SP041C?
You can click on the BUY or RFQ button to purchase HBS2KHF9SP041C from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part HBS2KHF9SP041C?
You can download the HBS2KHF9SP041C datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of HBS2KHF9SP041C?
C&K COMPONENTS
