C&K COMPONENTS TS01ABE Tiny Slide Switches
The TS series Tiny Slide Switches offer reliable contact design with RoHS compliance, suitable for test & measurement equipment, computers, peripherals, and networking. Features include epoxy terminal-seal, long electrical life of up to 60,000 cycles for TS01 models, and ratings up to 3 AMPS. They have various configurations with different contact materials like gold or silver, and are available with multiple termination options including PC thru-hole and wire wrap. Operating temperatures range from -30°C to 85°C, making these compact switches ideal for diverse electronic applications.
C&K COMPONENTS TS01ABE Tiny Slide Switches Specifications:
- Contact Rating: 3 AMPS @ 120 V AC or 28 V DC for TS02, TS03 Models; 0.4 VA max. @ 20V AC/DC for TS01 Model
- Electrical Life: 60,000 cycles for TS01 models; 30,000 cycles for TS02, TS03
- Contact Resistance: Below 20 milliohms initially
- Housing: Glass filled nylon 4/6, flame retardant, heat stabilized
- Contacts: Copper alloy with gold or silver plating options
- Insulation Resistance: 10^9 ohms min.
- Dielectric Strength: 1,000 V min. @ sea level
- Operating Temperature: -30°C to 85°C
- Terminal Seal: Epoxy, compatible with bottom-wash PCB cleaning
- Dimensions: Various sizes with epoxy seal and optional right-angle mounting
- RoHS compliant with contact materials like gold, silver, matte-tin
- Switch Function: SPDT On-None-On, SPST Off-None-On, available with epoxy or splashproof seals

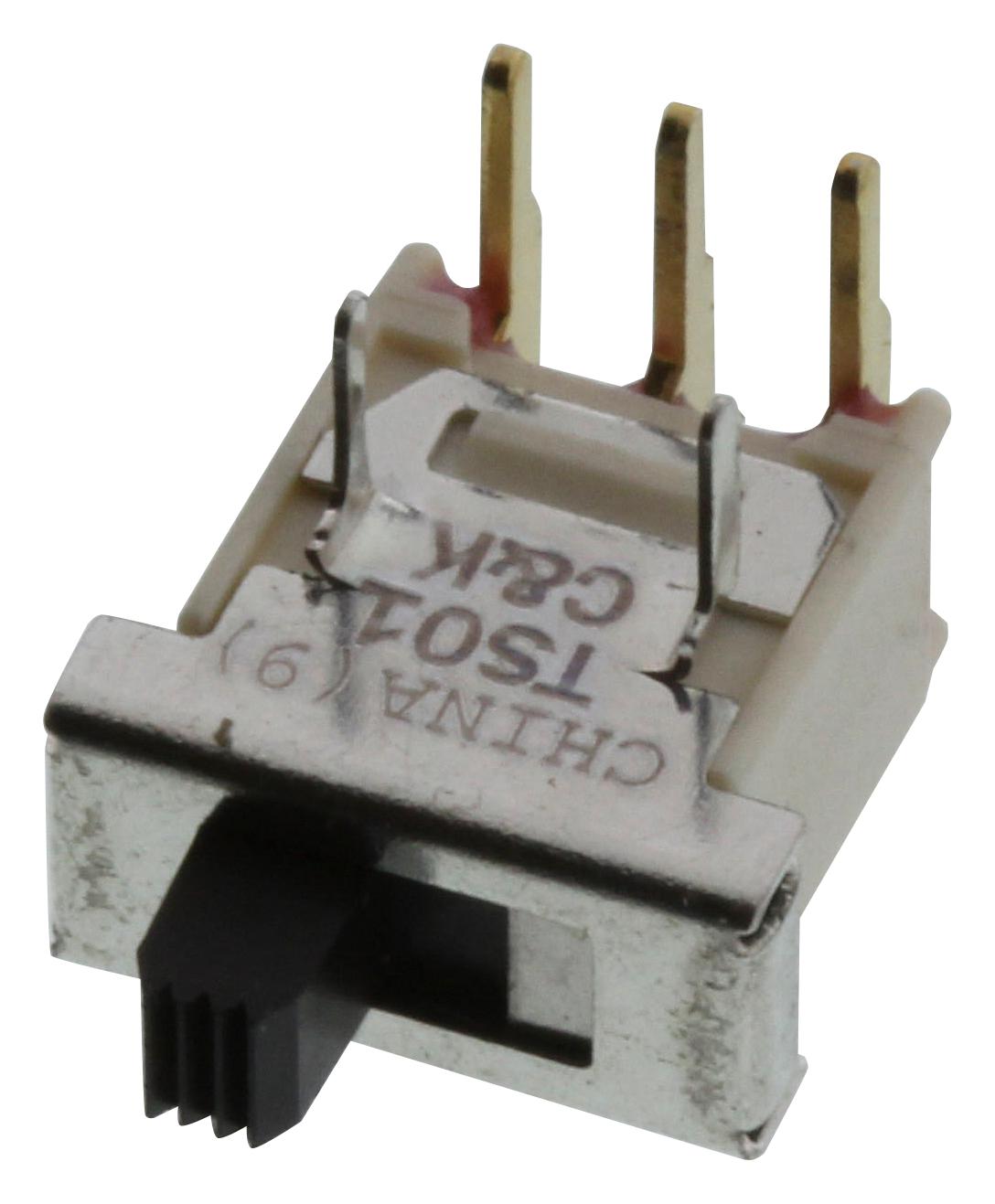

Buy the Buy Reliable Tiny Slide Switches Part Number TS01ABE Online
Order TS series Tiny Slide Switches online today and enjoy fast delivery of compact, reliable switches suitable for test, measurement, computing, and networking. Featuring epoxy terminal-seal, RoHS compliance, and ratings up to 3 AMPS, these switches accommodate various mounting options and contact materials such as gold or silver. With operating temperature ranges from -30°C to 85°C, they are perfect for demanding electronic environments. Enhance your projects with these durable, high-quality switches designed for long-lasting performance across applications.
Buy TS series Tiny Slide Switches from TS01ABE now and experience reliable contact design, durable operation, and excellent electrical performance for your electronic projects.
Frequently Asked Questions
Where can I buy C&K COMPONENTS TS01ABE?
You can click on the BUY or RFQ button to purchase TS01ABE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part TS01ABE?
You can download the TS01ABE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of TS01ABE?
C&K COMPONENTS
