C&K COMPONENTS ILSTA18060 LED Tactile Switch
The ILS Series Integrated LED Tact Switch is a compact, high-reliability tactile switch with integrated LEDs available in multiple heights and colors. Suitable for consumer electronics, health devices, test equipment, and audio/video control, it features durable operation with 100,000 cycles, low actuation force, and high insulation resistance. With a travel of 0.25 mm, it supports voltages up to 30VDC and currents up to 100mA. Its environmental ratings ensure operation from -40°C to +85°C, making it ideal for varied industrial and electronic applications.
C&K COMPONENTS ILSTA18060 LED Tactile Switch Specifications:
- Travel: 0.25 mm ± 0.1 mm
- Operating Life: 100,000 cycles
- Rating: 100mA max. @ 30VDC, 10pA min. @ 1VDC
- Insulation Resistance: 100MΩ min.
- Dielectric Withstanding Voltage: 250VAC 50-60Hz for 1 min
- Bounce Time: ON/OFF 5ms max.
- Initial Contact Resistance: 100mΩ max.
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Mechanical Style: THT
- Height Options: 7.00 mm, 7.20 mm, 8.50 mm
- Actuation Force: 180gf, 250gf
- LED Voltage: 2.3V to 3.6V depending on color
- LED Current: 5-30mA depending on color
- LED Colors: Red, Yellow/Green, Blue, White, Green
- Packaging: Bulk in bags of 500 pieces
- Supported PCB land dimensions and circuit diagrams available

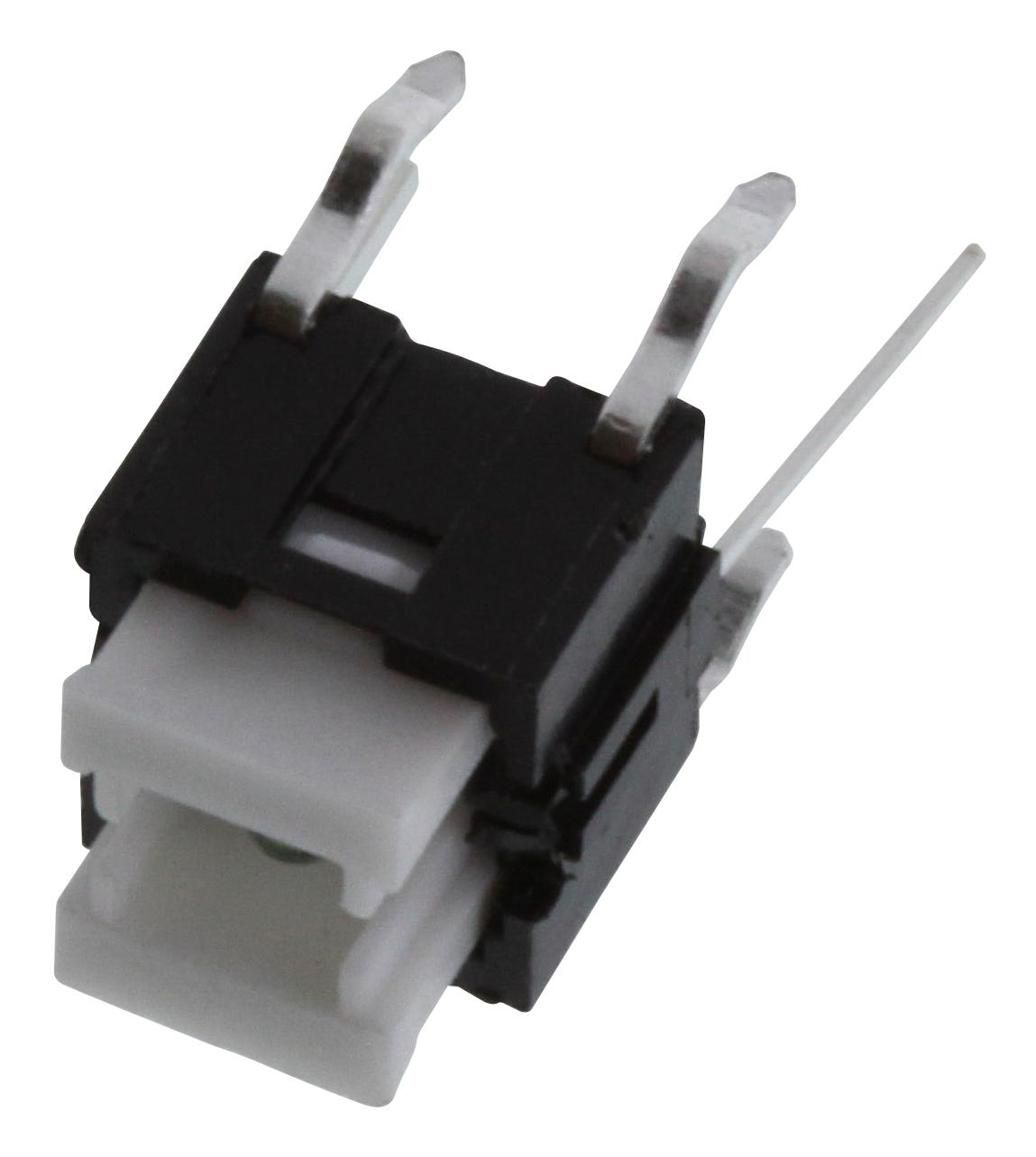

Buy the Buy CK Switches ILS Series Integrated LED Tact Switch Part Number ILSTA18060 Online
Enhance your electronic projects with the CK Switches ILS Series LED Tactile Switch, offering durable performance, multiple color options, and various heights. Designed for consumer electronics, health monitoring devices, and test equipment, this high-reliability switch features a long operating life of 100,000 cycles, low actuation force, and excellent insulation resistance. Its compact size and environmental resilience ensure dependable operation from -40°C to +85°C. Buy online today to get premium quality tactile switches for your industrial and electronic applications, ensuring seamless user interaction and robust performance.
Order your CK Switches ILS Series ILSTA18060 tactile switch today and enjoy reliable operation for consumer electronics, medical devices, and control systems.
