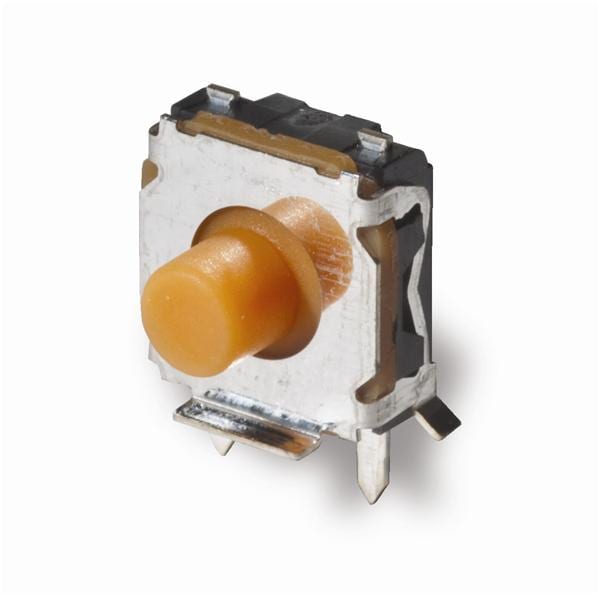

C&K COMPONENTS KSC441V2SPDELTALFS Sealed Tact Switch
The C&K COMPONENTS KSC441V2SPDELTALFS is a sealed tactile switch within the KSC series, engineered for reliable performance in harsh conditions. Its IP67 rating ensures protection against dust and water ingress, making it suitable for automotive, medical instruments, industrial electronics, and network infrastructure applications. The switch offers a positive tactile feel, various heights to accommodate different designs, and both J bend and Gullwing terminations for surface mount technology (SMT) assembly. Available with silver or gold plating options, the KSC441V2SPDELTALFS provides a robust and versatile solution for a wide range of industrial and commercial applications. Contact customer service for specific contractual specifications or custom options.
C&K COMPONENTS KSC441V2SPDELTALFS Sealed Tact Switch Specifications:
- operating_temperature: -40°C to 85°C
- storage_temperature: -55°C to 85°C
- maximum_power: 1 VA
- maximum_voltage: 32 VDC
- minimum_voltage: 20 mV
- maximum_current: 50 mA
- minimum_current: 1 mA
- contact_arrangement: 1 make contact = SPST, N.O.
- sealing: IP67
- dielectric_strength: ≥ 250 Vrms
- contact_resistance: ≤ 100mΩ
- insulation_resistance: ≥ 10M Ω
- bounce_time: ≤ 1 ms
- termination_types: J bend & Gullwing
- actuator_heights: Various heights (7.7mm, 2.5mm, 3.5mm, 5.2mm, 5.6mm, 4.3mm, 4.9mm)
- packaging: Tape and Reel (2,000 pieces)
- soldering: Suitable for infrared reflow soldering (IEC 61760-1)
Buy the KSC441V2SPDELTALFS C&K COMPONENTS Sealed Tact Switch | myMectronic
Purchase the C&K COMPONENTS KSC441V2SPDELTALFS Sealed Tact Switch securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS KSC441V2SPDELTALFS?
You can click on the BUY or RFQ button to purchase KSC441V2SPDELTALFS from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part KSC441V2SPDELTALFS?
You can download the KSC441V2SPDELTALFS datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of KSC441V2SPDELTALFS?
C&K COMPONENTS
