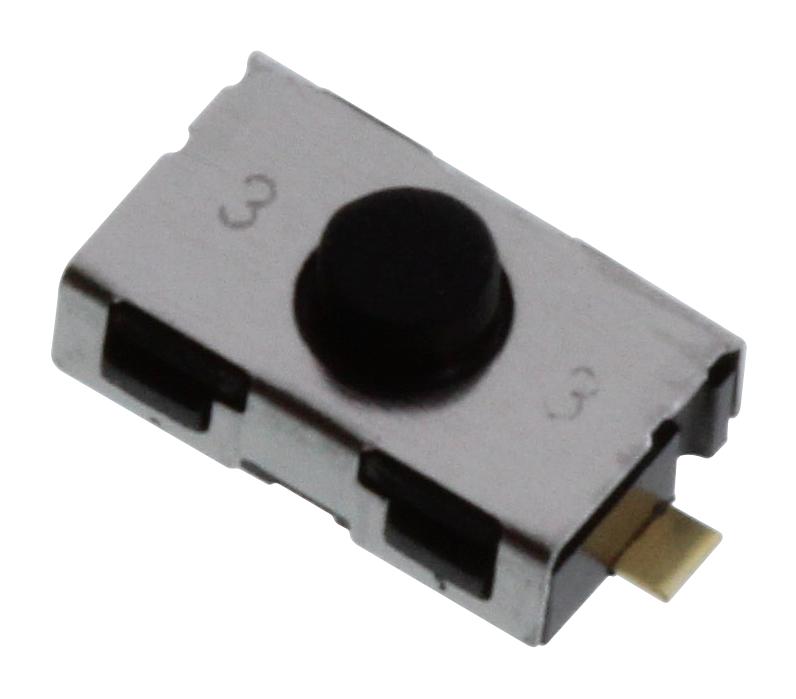

C&K COMPONENTS KSR233GLFG Subminiature Tact Switch
This subminiature tactile switch with long life durability is designed for SMT applications, featuring a rubber actuator and RoHS compliance. Available with silver or gold contacts, it offers a momentary action with a maximum power of 1VA and voltage of 32 VDC. The switch supports operating forces from 1.8N to 4.5N, has a contact resistance below 100 mΩ, and withstands temperatures ranging from -40°C to 125°C. Packaged on reels of 2,500 and compatible with lead-free reflow soldering, it suits automotive, medical, and industrial electronics, ensuring reliable performance and high cycle life of 200,000 operations.
C&K COMPONENTS KSR233GLFG Subminiature Tact Switch Specifications:
- Function: momentary action
- Maximum Power: 1VA
- Maximum Voltage: 32 VDC
- Minimum Voltage: 20 mV
- Maximum Current DC: 50 mA
- Minimum Current DC: 1 mA
- Contact Resistance: < 100 mΩ
- Insulation Resistance: 1 GΩ between terminals
- Bounce Time: 1 ms max.
- Operating Temperature: -40°C to 125°C
- Storage Temperature: -55°C to 125°C
- Actuation Force: 3.0 N (300 grams)
- Contact Material: Gold-plated
- Terminals: Gull wing for SMT
- Cycle Life: 200,000 operations
- Packaging: Reels of 2,500 pieces
- Soldering Method: Lead-free reflow compatible
Buy the Buy CKS Basic Switch Part Number KSR233GLFG Online
Order CKS KSR233GLFG today online to enjoy rapid delivery of this high-quality, long-life tactile switch with RoHS compliance, ideal for automotive, medical, and industrial electronics. Its compact size, gold contact, and gull wing terminals ensure easy PCB mounting. Built for durability, it supports up to 200,000 cycle operations and is compatible with lead-free reflow soldering. Secure your supply of this reliable switch now for your next project or upgrade, ensuring excellent performance and compliance with industry standards.
Get CKS KSR233GLFG today—designed for high cycle life and reliable performance in SMT applications.
Frequently Asked Questions
Where can I buy C&K COMPONENTS KSR233GLFG?
You can click on the BUY or RFQ button to purchase KSR233GLFG from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part KSR233GLFG?
You can download the KSR233GLFG datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of KSR233GLFG?
C&K COMPONENTS
