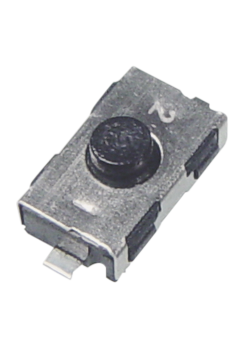

C&K COMPONENTS KSR252GLFS Subminiature Tact Switch
The C&K COMPONENTS KSR252GLFS is a subminiature tact switch offering a compact and reliable solution for various applications. This switch features momentary action and a gullwing termination suitable for surface mount technology (SMT). It is RoHS compliant, ensuring environmental responsibility. Typical applications include automotive systems, medical equipment, industrial electronics, and smart meters. The switch is designed for ease of integration and offers a robust performance in demanding environments.
C&K COMPONENTS KSR252GLFS Subminiature Tact Switch Specifications:
- Function: momentary action
- Contact Arrangement: Normally Open
- Terminals: Gullwing type for SMT
- Operating Force: 1.5-4.5 N (185-450 grams)
- Operating Life: 100,000 operations
- Travel: 0.25-0.5 mm ± 0.15
- Overload: 20 Newtons
- Maximum Power: 1 VA
- Maximum Voltage: 32 VDC
- Minimum Voltage: 20 mV
- Maximum Current DC: 50 mA
- Minimum Current DC: 1 mA
- Contact Resistance: ≤ 100 mΩ
- Insulation Resistance: 1G Ω (between terminals)
- Bounce Time: 1 ms max.
- Operating Temperature: -40˚C to 85˚C / -40˚C to 125˚C
- Storage Temperature: -55˚C to 85˚C / -55˚C to 125˚C
- Soldering: Compatible with lead free reflow soldering process
- Packaging: Continuous tape, in reels of 2,500 pieces
Buy the KSR252GLFS C&K COMPONENTS Subminiature Tact Switch | myMectronic
Purchase the C&K COMPONENTS KSR252GLFS Subminiature Tact Switch securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS KSR252GLFS?
You can click on the BUY or RFQ button to purchase KSR252GLFS from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part KSR252GLFS?
You can download the KSR252GLFS datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of KSR252GLFS?
C&K COMPONENTS
