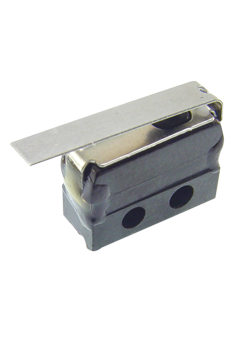

C&K COMPONENTS MMGGD1L0T Precision Snap-Acting Switch
The C&K COMPONENTS MMGGD1L0T is a subminiature precision snap-acting switch engineered for demanding applications requiring low-level and power switching capabilities. Its compact design and robust construction ensure long electrical and mechanical life, while the reliable snap-acting mechanism provides consistent performance. Commonly used in communication devices and other applications with limited space, this switch offers a balance of size, performance, and reliability. Material composition includes heat-resistant phenolic for the housing and actuator button, beryllium copper for the spring, and fine silver or 24K gold for the contacts, ensuring optimal conductivity and durability.
C&K COMPONENTS MMGGD1L0T Precision Snap-Acting Switch Specifications:
- Contact Rating: From low level to 7 AMPS @ 250 V AC
- Electrical Life: 100,000 cycles at full rated load
- Insulation Resistance: 1,000 ohm min
- Dielectric Strength: 1,000 V RMS min. @ sea level
- Operating Temperature: -67 F to 275 F (-55 C to 135 C)
- Operating Force: 5 oz. (142 grams) max. at actuator button
- Mounting: 2-56 screws, torque 2 in/lbs max
- Switch Housing: Heat resistant phenolic (UL 94V-0)
- Actuator Button: Heat resistant phenolic (UL 94V-0)
- Spring: Beryllium copper CDA alloy C17200
- Pivot: Brass CDA alloy 260
- Movable Contacts: Fine silver (for ratings > 1 AMP @ 125 V AC) or 24K gold (for 1 AMP @ 125 V AC or less)
- Stationary Contacts: Fine silver inlay on copper CDA alloy C10200 (for ratings > 1 AMP @ 125 V AC) or 24K gold on copper CDA alloy C10200 (for 1 AMP @ 125 V AC or less)
- Terminals: Copper CDA alloy C18700
- Low Level Condition: 0.4 VA max. @ 20 V AC or DC max
