C&K COMPONENTS NP8S3P203QE Sealed Industrial Pushbutton Switch
The NP Series Sealed Industrial Pushbutton Switch offers reliable performance in harsh environments with an IP68 sealing rating. Featuring a robust aluminum housing, multiple actuator colors, and solder lug terminals, it supports resistive loads up to 5A and is suitable for industrial, transportation, and military applications. With a long operating life of 1,000,000 cycles, dielectric strength of 1000 V AC, and options for gold or silver contact materials, this switch ensures durability, excellent electromagnetic compatibility, and versatile mounting options for demanding control systems.
C&K COMPONENTS NP8S3P203QE Sealed Industrial Pushbutton Switch Specifications:
- Housing Material: 6061-T6 Aluminum, black or clear anodized
- Sealing: IP68
- Electrical Rating: 5A/32 VDC resistive, 1A/32 VDC resistive optional
- Dielectric Strength: 1000 V AC for 1 min
- Operating Life: 1,000,000 cycles
- Contact Resistance: 50 mΩ max (initial)
- Contact Material: Silver (STD), Gold over Silver or Epoxy options available
- Operating Temperature: -40°C to +85°C
- Operating Force: 8N ± 1.5N
- Actuator Colors: Black (STD), Red, Orange, Yellow, Gray
- Mounting Types: Threaded front or rear, slot, or panel mount
- Wire Options: 22 AWG UL1569 overmolded wire, solder lug
- Vibration Resistance: 10-500 Hz, 10g Max
- Shock Resistance: 50g, 11 ms
- Terminal Seal: Epoxy

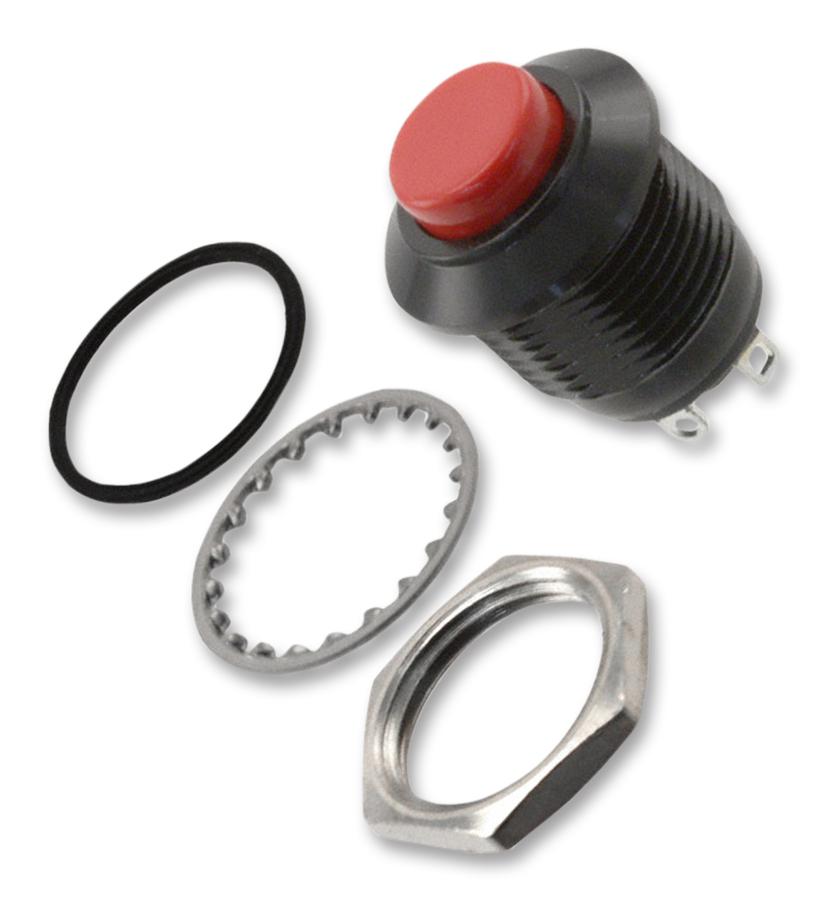

Buy the Buy Industry-Grade Sealed Pushbutton Switch Part Number NP8S3P203QE Online
Purchase the NP Series sealed industrial pushbutton switch online today for durable, weatherproof control suitable for harsh environments. Featuring IP68 sealing, silver or gold contact options, and a long operating life of 1,000,000 cycles, this switch is perfect for industrial, military, and transportation applications. Its aluminum housing provides excellent durability, with multiple mounting styles and color options for versatile installation. Protect your control systems with a reliable switch designed to withstand vibration, shock, and extreme temperatures, ensuring your projects stay operational under demanding conditions.
Order your industry-grade NP Series sealed pushbutton switch Part Number NP8S3P203QE today and ensure durable, reliable control in harsh environments with IP68 sealing.
Frequently Asked Questions
Where can I buy C&K COMPONENTS NP8S3P203QE?
You can click on the BUY or RFQ button to purchase NP8S3P203QE from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part NP8S3P203QE?
You can download the NP8S3P203QE datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of NP8S3P203QE?
C&K COMPONENTS
